Shengda Plastic Machinery Co., Ltd. Qingdao Branch is located in Jiaozhou, Shandong Province, is a major producer of plastic extrusion machinery professional equipment manufacturers, the main products: a new environmentally friendly PE, PP, PVC wood-plastic profile production line, plastic hollow grid board production line, PP- R hot and cold water pipe production line, PVC water supply and drainage, threading pipe production line, PE gas supply pipe production line, hollow wall winding pipe production line, PVC transparent film material production line, PP, PE, PVC, PC, ABS plastic plate sheet, wood board sheet production line, WPC building template extrusion lines, etc. The company always follow the 'good faith, ...

20-160 PPR co-extruded pipe production line

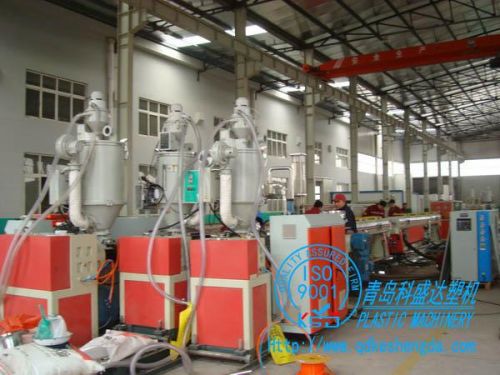

20-160 PPR co-extruded pipe production line It made using the latest German technology manufacturing, high-efficiency extruder with high torque gearbox, new type slotted barrel, LTM efficient screw extrusion capacity, low-temperature melting materials, the real low-temperature plastics. Head mold as the Split head screw head or basket, can be equipped with a static mixing system, the internal pressure distribution is more uniform. vacuum sizing box for the two-stage, perfect water temperature, water level and flow control to ensure production of high quality pipe. production diameter range φ20-φ160mm production speeds up to 16 m / min. 20-160 PPR co-extruded pipe production line with different molds, screw and ancillary equipment, can produce PE, ABS, PERT, REX-B pipes and two different materials plastic composite pipe.

20-160 PPR co-extruded pipe production line The main technical parameters:

model	SJ50 / 45/45/30	SJ65 / 50/50/30	SJ90 / 65/65/30
material	PP-R and masterbatch	PP-R and masterbatch	PP-R and masterbatch
Extruder Model	SJ50 / 30 SJ 45/30 30/25	SJ65 / 32 SJ50 / 32 SJ30 / 25	SJ90 / 32 SJ65 / 32 SJ30 / 25
Production Diameter (mm)	ABC form 16-20-25-32-40-50	ABC in the form of Form 16-20-25-32-40-50-63	ABC form 50-63-75-110-160
Motor Power	15-22kw	15-37kw	22-55kw
Yield	100kg / h	150 kg / h	250kg / h

Contact: Liu
Tel: 86-0532-87255588 13864237789
Fax: 86-0532-82271877
Contact Address: Qingdao Jiaozhou Road 288 Yangzhou
