Shengda Plastic Machinery Co., Ltd. Qingdao Branch is located in Jiaozhou, Shandong Province, is a major producer of plastic extrusion machinery professional equipment manufacturers, the main products: a new environmentally friendly PE, PP, PVC wood-plastic profile production line, plastic hollow grid board production line, PP- R hot and cold water pipe production line, PVC water supply and drainage, threading pipe production line, PE gas supply pipe production line, hollow wall winding pipe production line, PVC transparent film material production line, PP, PE, PVC, PC, ABS plastic plate sheet, wood board sheet production line, WPC building template extrusion lines, etc. The company always follow the 'good faith, ...

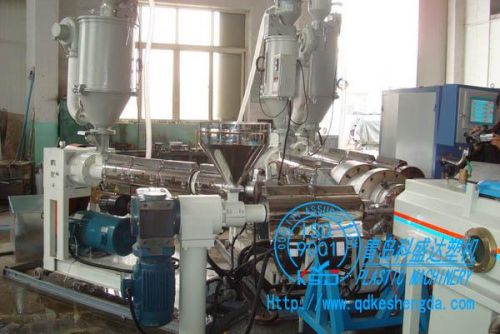

Tier co-extruded PP-R pipe machinery Through the three-tier co-extrusion technology, using our unique design of three-layer coextrusion spiral die, the intermediate reinforcing layer Tier co-extruded PP-R pipe machinery Production of PPR pipe as short glass fiber according to certain rules of order, and the inner and outer PP-R (or PP-B) layer of an organic fusion as a whole, to enhance the effect. Significantly overcome the overhang phenomenon pure PP-R pipe surface mounted when reduces the coefficient of linear expansion of the pipe. with the same specifications, compared with pressure levels of pure PP-R pipe, save material, reduce costs and become more competitive. Production tubing from φ20 ~ φ110mm. three co-extruded PP-R tube machinery production line process: raw materials + masterbatch → mixing → vacuum drying raw materials → → single screw extruder → single screw extruder → color line extruder screw-type extrusion abrasive → → → spray sizing sleeve Shower vacuum sizing box → spray cooling water tank → → crawler tractor Maji → chipless tube cutting machine → → finished product testing package stacking frame

Tier co-extruded PP-R pipe machinery The main technical parameters:

model	SJ50 / 45/45/30	SJ65 / 50/50/30	SJ90 / 65/65/30
material	PP-R and masterbatch	PP-R and masterbatch	PP-R and masterbatch
Extruder Model	SJ50 / 30 SJ 45/30 30/25	SJ65 / 32 SJ50 / 32 SJ30 / 25	SJ90 / 32 SJ65 / 32 SJ30 / 25
Production Diameter (mm)	ABC form 16-20-25-32-40-50	ABC in the form of Form 16-20-25-32-40-50-63	ABC form 50-63-75-110-160
Motor Power	15-22kw	15-37kw	22-55kw
Yield	100kg / h	150 kg / h	250kg / h

Contact: Liu
Tel: 86-0532-87255588 13864237789
Fax: 86-0532-82271877
Contact Address: Qingdao Jiaozhou Road 288 Yangzhou
