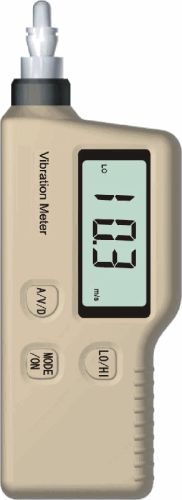

The instrument uses piezoelectric acceleration sensor, vibration signals converted into electrical signals by the input signal processing and analysis, showing the vibration acceleration, velocity, displacement, and available printer to print out the corresponding measured values .
| General features and specifications |
| Acceleration measurement frequency range | 10Hz-1KHz (LO) / 1KHz-15KHz (HI) |
| Speed measurement frequency range | 10Hz-1KHz (LO) |
| Displacement measurement frequency range | 10Hz-1KHz (LO) |
| Measurement error | ± 5% H / ± 2Digits) |
| Vibration acquisition | The piezoelectric ceramic accelerometer ( shear ) |
| LCD display | Three and a half digital display |
| Display data refresh time | 1S |
| Data output | AC output Peak ( Display full scale ); Load : 10K Euro or high impedance headphones |
| power supply | 9V battery (6F22 or the same size battery ) |
| Product Weight | 147 g |
| Product Size | 67 * 30 * 183mm |
| Packing | Boxed |
