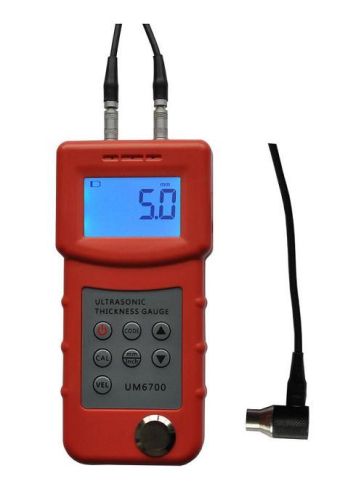

UM6700 ultrasonic thickness gauge is using the advanced technology, the development of a low-power low limit pocket measuring instrument can measure the material is a good conductor of various ultrasonic applications: This instrument can be a variety of sheet metal and machined for Parts for accurate measurements, it can produce a variety of piping equipment and pressure vessels monitoring, monitoring the extent they are subject to corrosion after the thinning during use is widely used in petroleum, chemical, power plants, metallurgy, shipbuilding, aviation, aerospace, machinery manufacturing and pressure vessels, chemical equipment, boilers, storage tanks and other fields.

Measurable material: steel, cast steel, aluminum, brass, zinc, quartz glass, polyethylene, gray cast iron, ductile iron, ceramics, plastics and any other good conductor of ultrasonic thickness
Velocity range: 500-9000m / s
Environment: Operating temperature: 0-40 ℃ Humidity: ≤90% RH.
Surroundings without a strong vibration, no strong magnetic field, corrosive medium and severe dust.

Measuring range (metric / inch): 1.0 ~ 300mm 0.06-11.8inch
Resolution: 0.1mm
Accuracy: ± (0.5% n + 0.2)
Power: 4 AA batteries
Volume: Host 140mm * 60mm * 24mm
Large-screen liquid crystal display and the number of operators with high brightness backlight for easy use in dimly lit environments;
Known thickness can counter measure the speed of sound, in order to improve the measurement accuracy
Free metric conversion;
Coupling state prompts;
Low battery indicator;
Automatic shutdown power-saving features.
Known thickness can counter measure the speed of sound, in order to improve the measurement accuracy
Standard configuration:
Host 1
5MФ8 sensor 1
Coupling agent 1
Instructions 1
Carrying Case 1
1 (the host) calibration block
