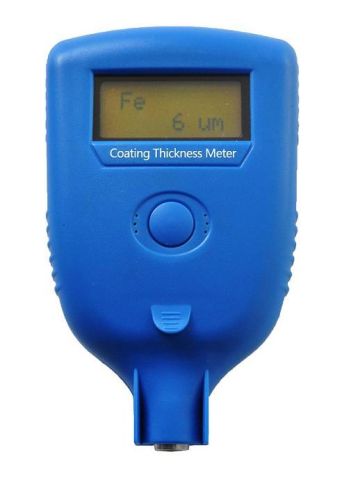

L100 coating thickness gauge design portable and durable, it can be used normally under harsh conditions. L100 has a key operating functions, without calibration, do not reset the next measurement can be carried out without the need for operator training to operate .
L100 Coating Thickness Gauge features:
It can be zero calibration and full-scale calibration.
Ruby wear probe.
You can probe the basic calibration.
With automatic shutdown function.
The process has beep prompt.
Low voltage indicator.
Error prompts.
Measuring principle: magnetic and eddy current method
Measuring range: 1 ~ 500μm (LEE100F) measuring range: 1 ~ 1250μm (LEE100N)
Measurement Accuracy: ± [(1 ~ 3)% H + 1] μm (full-scale calibration)
Resolution: 1μm
Workpiece requirements: minimum radius of curvature (mm) 5 convex / concave 10; Contact minimum area diameter 10 (mm); substrate thickness street (mm) 0.3
Environment: Temperature 0-40 degrees Celsius; humidity 20% -75%; non-magnetic field environment
Power supply: four 1.5-volt AAA battery
Dimensions: 112 * 69 * 28mm
Weight: 82 g (without battery)


Standard configuration:

Host standard calibration piece group, calibration iron matrix, user guide, certificate of inspection reports in English, suitcases, batteries.
