DT-157 can be applied to coating/plating thickness measurement in the following areas: coating of automobile production and maintenance assessment of aerospace industry, aircraft industry shipbuilding construction decoration coating quality assessment of metal processing and machinery and equipment manufacturing

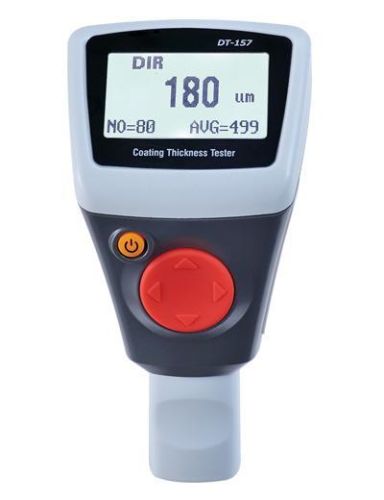

DT-157 is a newly developed high-precision, fast, functional coating thickness gauge; Set automatic conversion of magnetic and non-magnetic measurements in one, leading-edge technology ensures accurate and rapid feature, let your coating, coating thickness measurements are done efficiently.
1, measurement of coating:
① magnetic surfaces thickness of non-magnetic coatings
② non-magnetic metal surfaces insulating coating thickness
2, rich menu of actions
3, and a single measurement mode
4, direct work patterns and work mode
5, statistics and display: average values, maximum, minimum, standard deviation, statistics
6, point or two-point calibration
7, can hold 2,500 measurement data
8, Bluetooth wireless transmission function
9, delete measurement data in real time and set of data
10, ten adjustable brightness with backlight LCD display
11, low power and error messages
12, you can set the automatic power off function
| Sensor probe | Ferromagnetic | Non-ferromagnetic |
| Working principle | Magnetic induction | Eddy current |
| Measuring range | 0~2000μm | 0~2000μm |
| Precision | 1~2%+2μm | 1~2%+2μm |
| Resolution | 0.1μm | 0.1μm |
| Minimum curvature RADIUS | 1.5mm | 3mm |
| Minimum measuring area (diameter) | 7mm | 5mm |
| Measurable minimum matrix thickness | 0.5mm | 0.3mm |
Working environment:-20~80℃
Size: 113.5*54*27mm
Weight: 110g
