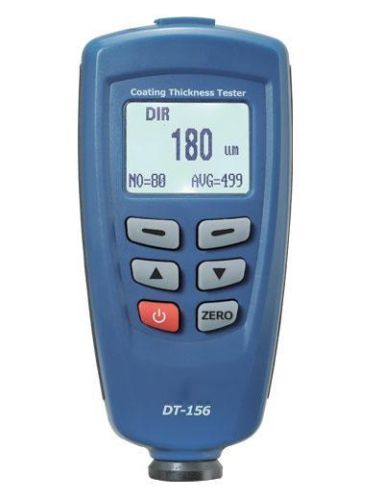

Coating Thickness Gauge DT156

bargain

DT-156 Coating Thickness Gauge probe can operate in two electromagnetic induction and eddy current principle. In automatic mode (AUTO), the two principles of visual measurement matrix automatically convert, or automatic mode via the menu and non-automatic mode conversion.

1, measurable Coating:
① non-magnetic coating thickness of the magnetic substance surface
② insulating non-magnetic metal surface coating thickness
2, a wealth of operational menu
3, continuous and single measurement mode
4, the direct operating mode and Group mode
5, and displays statistics: average, maximum, minimum, standard deviation, statistics
6, can be point or two-point calibration
7, can save 400 measurement data
8, USB connection and data transfer to a computer
9, real-time measurement data and group data deleted
10, ruby probe
11, low power and error
12, you can set the automatic shutdown function

Sensor probe	Ferromagnetic	Non-ferromagnetic
working principle	Magnetic induction	vortex
Measuring range	0~1250μm	0~1250μm
Accuracy	±3%+1μm	±3%+1.5μm
Resolution	0.1μm	0.1μm
Minimum radius of curvature	1.5mm	3mm
Minimum measuring area (diameter)	7mm	5mm
Measurable minimum thickness of the substrate	0.5mm	0.3mm

Size: 113.5 * 54 * 27mm
Weight: 110g

Instructions * 1
Warranty card * 1
AAA 7 batteries * 2
Ferromagnetic base * 1
Aluminum block substrate * 1
Calibration sheet * 3
USB cable * 1
Software CD * 1
Portable Tool Box * 1
