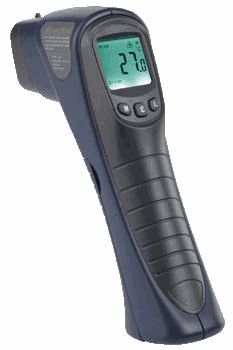

TK80 Precision Infrared Thermometer

bargain

Infrared thermometer temperature measurement principle is to transform the object ( e.g. steel ) emits infrared radiant energy into an electrical signal having, infrared radiation and the size of the object ( e.g. steel ) corresponding to the temperature itself, into an electrical signal according to the size of , after the operational amplifier, through digital circuits at once, you can draw temperature of the object ( such as steel ) in. and different objects, different surface radiation is different, so you need to adjust the accurate emission rate, and other objects temperature.

Precise non-contact temperature measurement, built-in laser sight
Automatic data hold and auto power off ( auto power off after 15 seconds )
Distance and target size ratio D: S = 12: 1
White backlit LCD display
Resolution : 0.2 ° C (0.4 ° F), selectable ° C / ° F
Overload display : -0L-
Range : -25 ~ 840 ° C (-13 ~ 1544 ° F)
Sampling rate: 0.5 seconds
Emission rate: 0.99 / 0.95 / 0.89 / 0.85 / 0.79 / 0.75
Spectral response : 6 ~ 14μm
Power source : single 9V battery
Accuracy : -25 ~ 840 ° C, ± (1.5% + 1 ° C)
-13 ~ 1544 ° F, ± (1.5% + 1 ° F)
Operating temperature : -10 ~ 40 ° C (14 ~ 104 ° F)
Operating humidity : 10 ~ 80% RH
