LKV342 HDMI Matrix Video Switch 4X2 (3D)

bargain

Long strong HDMI Matrix Switcher four into two LKV342, full support for HDMI 1.3 standard, with matrix switching function, supports 4 to switch between the two distribution design, but also provides remote control functionality, ease of use, all channels fully support the 1080P transmission capacity. Providing the maximum amount of fully functional integrated system .HDMI products support both audio and video signals.

LKV342 can display 1080 lines of vertical pixels of 3D HD output support Blu-ray, PS3 and other multimedia HDMI 3D output devices. So wonderful 3D world at your fingertips.

Features

- Any switch between the four signals;
- Assign four arbitrary signal to two HDMI displays Renyiyitai station;
- Supports 480p, 720p, 1080i, and 1080p resolution;
- Support for high-resolution video - easily reach the beautiful HDTV resolutions up to 1080p;
- Infrared remote control;
- All Compatible HDMI1.3
- Compatible with HDCP;
- Easy to install, easy to disassemble;

Video amplifier signal bandwidth
1.65 Gbps
Input video signal level
1.2 V p-p
Input DDC signal level
5 volts p-p (TTL)
Single connection signal range
1080p/ 1920*1200
HDMI input / output: port
A type 19-pin female connector
Remote control port
RS232 female, mini - stereo
power supply
RS232 female, mini - stereo 24 volt
Power
60 watts (maximum)
size
17 W x 1.75H x 5.875 D inch
Shipping Weight
10Ibs

Connection diagram

Interface Description

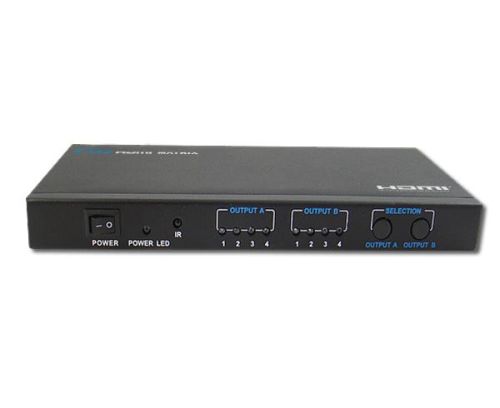

Front panel:

(1) Power switch (2) Power indicator

(3) infrared light (4) Output signal indicator

(5) Output signal indicator (6) output A channel selection keys

(7) B output channel selection key

Rear panel:

(8) Input channel 1 (9) output channel 2

(10) 3 input channels (11) input channels 4

(12) Output channel A (13) B output channels

(14) output audio left channel (15) Audio right output

(16) power input port
