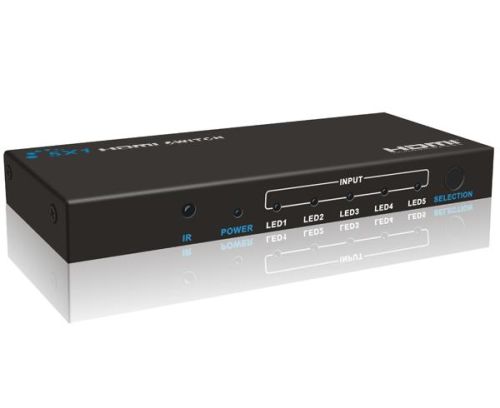

LKV501 five into a 3D HDMI Switcher

bargain

Long-developed by LKV501HDMI switch, the switch includes Rd HDMI inputs, one HDMI output, support multiple resolutions, up to 1080p, the user and through the infrared remote control or front panel buttons, easy Switching can easily switch the contents of the five HDMI interface to the TV side, significantly increasing ease of operation.

Features

--5 HDMI inputs, 1 HDMI output;
- Supports 480p, 720p, 1080i, 1080p, and other resolutions;
- Supports HDMI 1.3 standard;
- Video Amplifier Bandwidth: 1.65 Gbps;
- Compatible HDCP specification;
- Remote control;
- Notable features:
- Boot automatically search for the signal input port of the current;
- Automatically search the signal input port by remote control;

Video amplifier signal bandwidth
1.65 Gbps
Signal Type
HDMI + HDCP 1.0 / 1.2 / 1.3
Differential phase
0.05o (RL = 150Ω)
Differential Gain
0.05% (RL = 150Ω)
The maximum propagation delay
5ns (± 1)
Switching Speed
≤180ns
HDMI output maximum transmission distance
≤15m
Input video signal level
1.2 V p-p
Input DDC signal level
5 volts p-p (TTL)
Single connection signal range
1080p/ 1920*1200
HDMI input / output: port
A type 19-pin female connector
Remote control port
RS232 female, mini - stereo
Return Loss
-30Db @ 5MHz
power supply
RS232 female, mini - stereo 24 volt
Power
5 watts (max)

Long-LKV501HDMI switcher output images up to 1080 lines of vertical pixels, in line with HDMI1.3 standard, compatible with HDCP protocol
