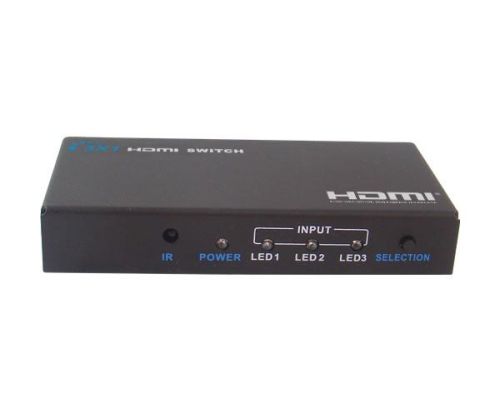

LKV331MINI HDMI switcher into a mini-version of three (3D)

bargain

LKV331 switch series is Long strong science and technology research and development for home entertainment customers, HDMI is widely used in the family, HDMI output interface, high-definition equipment, more and more, such as: DVD player, digital TV set-top box, PS3 game consoles , and the current flat-panel TV or LCD TV with a HDMI interface most also just one. Long-developed by LKV331HDMI switch, the switch includes three HDMI inputs, one HDMI output, support for multiple resolutions supports up to 1080p, users and through infrared remote control or front panel buttons, easily switch can easily switch the contents of the three HDMI interface to the TV side, significantly increasing ease of operation.

Features

--3 HDMI inputs, 1 HDMI output;
- Supports 480p, 720p, 1080i, 1080p, and other resolutions;
- Supports HDMI 1.3 standard;
- Video Amplifier Bandwidth: 1.65 Gbps;
- Compatible HDCP specification;
- Remote control;
- Notable features:
- Boot automatically search for the signal input port of the current;
- Automatically search the signal input port by remote control;

Video amplifier signal bandwidth
1.65 Gbps
Signal Type
HDMI + HDCP 1.0 / 1.2 / 1.3
Differential phase
0.05o (RL = 150Ω)
Differential Gain
0.05% (RL = 150Ω)
The maximum propagation delay
5ns (± 1)
Switching Speed
≤180ns
HDMI output maximum transmission distance
≤15m
Input video signal level
1.2 V p-p
Input DDC signal level
5 volts p-p (TTL)
Single connection signal range
1080p/ 1920*1200
HDMI input / output: port
A type 19-pin female connector
Remote control port
RS232 female, mini - stereo
Return Loss
-30Db @ 5MHz
power supply
5V1A (optional)
Power
5 watts (max)

Long-LKV331HDMI switcher output images up to 1080 lines of vertical pixels, in line with HDMI1.3 standard, compatible with HDCP protocol
