The popularity of computers to people's work and life has brought great convenience. Maybe in certain situations you need to convert the computer's VGA signals into Video / Svideo signal. You can download the MPEG4 movie, can and at home home theater combination, allowing you to easily experience the cinematic effect; you can also demonstrate the need for notebook multimedia documents, on the big screen TV is presented to your audience ......
Long-LKV2000 Video Converter can help you easily convert VGA signal to Video / Svideo signal.

lkv2000 upgrade for LKV3000 available now, details click: http:? //www.lenkeng.com/ showproduct.asp id = 115

- 1 VGA signal input port, a VGA output port
- 1 Video output port, an output port Sideo
- One DC 5V power connector
- Input VGA Signal Support Resolution: 640x480 @ 60/72/75 / 85Hz, 800x600 @ 60 / 75Hz, 1024x768 @ 60 / 75Hz
- While the output VGA / VIDEO / S-VIDEO signal
- Can be simultaneously displayed on the display screen and TV
- Support for the following system: NTSC (Taiwan, the United States), NTSC-EIAJ (Japan), PAL (Europe, China).
PAL-M (Brazil), PAL-N (Uruguay, Paraguay) and other countries TV system
- Support for full-frame (OVERSCAN) and non-full screen (UNDERSCAN) two display modes
- Light, thin, short, small and easy to carry
- Volume: 110mm (length) x56mm (width) x36mm (H)
• support both PC and MAC computers
• No need to install drivers, plug and play

name

Description

(1) DC 5V

Then the computer USB port

(2) standard regulator

Adjustment of PAL / NTSC

(3) Video Out

Connected TV or VCR

(4) Svideo Out

Connected TV or VCR

(5) VGA Out

Then monitor

(6) VGA In

Connected computer graphics

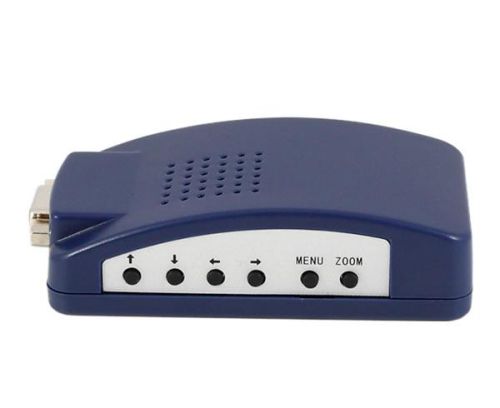

name

Description

(1) (2) (3) (4)

These four keys of up, down, left, right, you can adjust the screen position AV

(5) MENU

Menu key, press the OSD menu appears; press 3 seconds to reset

(6) ZOOM

Zoom key, click to enlarge the picture; press again resume
