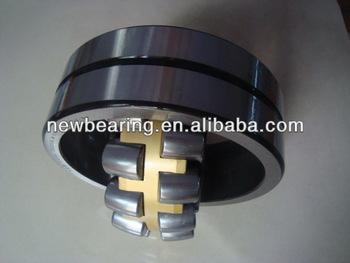

Spherical Roller Bearings
Quick Details
- Structure: Spherical
- Type: Roller
- Brand Name: THKF
- Bore Size: 20 - 1000 mm
- Outside Diameter: 25 - 1200 mm
- Model Number: 22222E
- Precision Rating: ABEC3 ABEC5
- Seals Type: open
- Number of Row: Single Row
- Place of Origin: China (Mainland)
- Body Material: : GCr15
- Cage Material: : bearing steel/ brass
- Lubrication: : Grease, oil
- Clearance: : C0, C2, C3, C4
- Vibration: : V1, V2, V3, V4
- Noise level: : Z1, Z2, Z3, Z4
- Structure Type: single row, double row, four row
- Cage Type: : CA, CC, MA, MB
Packaging & Delivery
| Packaging Details: | Industry packing original packing+ wooden box As clients requirment |
|---|---|
| Delivery Detail: | 1-60 Workdays |
Specifications
1) Spherical Roller Bearings2) Standard: ISO9001: 2000
3) Competitive price, OEM product
4) ID size: 20-1000mm
5) ISO9001-2000
Spherical Roller Bearings
Features:
1) Series: 21300 series, 22200 series, 22300 series, 23100 series, 23200series, 24000 series, 24100 series and 23900 series
2) Material of rings and rollers: Chrome steel; GCr15 and GCr15SiMn, carbon steel, stainless steel
3) Material of cages: Brass, steel and nylon
4) Precision: P0, P6
5) Suffixes:
A) CA: Integral brass cage, double row symmetrical rollers, inner ring ride
B) MA: Integral brass cage, double row symmetrical rollers, outer ring ride
C) MB: Two piece brass cage, double row asymmetrical rollers, inner ring ride
D) CC: Two piece steel cage, double row symmetrical rollers, inner ring ride
E) CTN1: Double row symmetrical rollers, nylon cage
F) K: Tapered bore bearing, the taper is 1: 12
G) K30: Tapered bore bearing, the taper is 1: 30
H) W33: With lubrication groove in outer ring, with three oil holes
I) C2/ C3/ C4: Internal clearance series: C2, C0, C3, and C4
Following items can be supplied in short time, any interest, pls feel free to contact us.
| Bearing numbers | Dimensions | Load ratings | Mass | |||||
| d | D | B | r | Dynamic | Static | |||
| Cylindrical bore | Tapered bore | mm | min | Cr (kN) | C0r (kN) | ≈kg | ||
| 23938 CC/ W33 | 23938 CC/ W33 | 190 | 260 | 52 | 2 | 414 | 800 | 8.4 |
| 23038 CC/ W33 | 23038 CC/ W33 | 190 | 290 | 75 | 2.1 | 753 | 1340 | 18 |
| 24038 CC/ W33 | 24038 CCK/ W33 | 190 | 290 | 100 | 2.1 | 978 | 1800 | 24 |
| 23138 CC/ W33 | 23138 CC/ W33 | 190 | 320 | 104 | 3 | 1200 | 2080 | 34.5 |
| 24138 CC/ W33 | 24138 CCK/ W33 | 190 | 320 | 128 | 3 | 1400 | 2500 | 42 |
| 22238 CC/ W33 | 22238 CC/ W33 | 190 | 340 | 92 | 4 | 1110 | 1700 | 36.5 |
| 23238 CC/ W33 | 23238 CC/ W33 | 190 | 340 | 120 | 4 | 1460 | 2400 | 47.5 |
| 22338 CC/ W33 | 22338 CC/ W33 | 190 | 400 | 132 | 5 | 1870 | 2650 | 80 |
| 23940 CC/ W33 | 23940 CCK/ W33 | 200 | 280 | 60 | 2.1 | 546 | 1040 | 11.5 |
| 23040 CC/ W33 | 23040 CCK/ W33 | 200 | 310 | 82 | 2.1 | 880 | 1530 | 23 |
| 24040 CC/ W33 | 24040 CCK30/ W33 | 200 | 310 | 109 | 2.1 | 1130 | 2120 | 30.5 |
| 23140 CC/ W33 | 23140 CCK/ W33 | 200 | 340 | 112 | 3 | 1380 | 2360 | 42.5 |
| 24140 CC/ W33 | 24140 CCK30/ W33 | 200 | 340 | 140 | 3 | 1580 | 2800 | 52 |
| 22240 CC/ W33 | 22240 CCK/ W33 | 200 | 360 | 98 | 4 | 1270 | 1930 | 43.5 |
| 23240 CC/ W33 | 23240 CCK/ W33 | 200 | 360 | 128 | 4 | 1610 | 2700 | 57 |
| 22340 CC/ W33 | 22340 CCK/ W33 | 200 | 420 | 138 | 5 | 2020 | 2900 | 92.5 |
| 23944 CC/ W33 | 23944 CCK/ W33 | 220 | 300 | 60 | 2.1 | 546 | 1080 | 13 |
| 23044 CC/ W33 | 23044 CCK/ W33 | 220 | 340 | 90 | 3 | 1050 | 1860 | 30.5 |
| 24044 CC/ W33 | 24044 CCK30/ W33 | 220 | 340 | 118 | 3 | 1360 | 2600 | 39.5 |
| 23144 CC/ W33 | 23144 CCK/ W33 | 220 | 370 | 120 | 4 | 1580 | 2750 | 53 |
| 24144 CC/ W33 | 24144 CCK30/ W33 | 220 | 370 | 150 | 4 | 1840 | 3350 | 65 |
| 22244 CC/ W33 | 22244 CCK/ W33 | 220 | 400 | 108 | 4 | 1520 | 2360 | 60.5 |
| 23244 CC/ W33 | 23244 CCK/ W33 | 220 | 400 | 144 | 4 | 2070 | 3450 | 79.5 |
| 22344 CC/ W33 | 22344 CCK/ W33 | 220 | 460 | 145 | 5 | 2350 | 3450 | 120 |
| 23948 CC/ W33 | 23948 CCK/ W33 | 240 | 320 | 60 | 2.1 | 564 | 1160 | 14 |
| 23048 CC/ W33 | 23048 CCK/ W33 | 240 | 360 | 92 | 3 | 1130 | 2080 | 33.5 |
| 24048 CC/ W33 | 24048 CCK30/ W33 | 240 | 360 | 118 | 3 | 1380 | 2700 | 42.5 |
| 23148 CC/ W33 | 23148 CCK/ W33 | 240 | 400 | 128 | 4 | 1790 | 3200 | 65.5 |
| 24148 CC/ W33 | 24148 CCK30/ W33 | 240 | 400 | 160 | 4 | 2100 | 3900 | 80.5 |
| 22248 CC/ W33 | 22248 CCK/ W33 | 240 | 440 | 120 | 4 | 1910 | 3000 | 83 |
| 23248 CC/ W33 | 23248 CCK/ W33 | 240 | 440 | 160 | 4 | 2530 | 4300 | 110 |
| 22348 CC/ W33 | 22348 CCK/ W33 | 240 | 500 | 155 | 5 | 2670 | 4000 | 155 |
| 23952 CC/ W33 | 23952 CCK/ W33 | 260 | 360 | 75 | 2.1 | 880 | 1800 | 24 |
| 23052 CC/ W33 | 23052 CCK/ W33 | 260 | 400 | 104 | 4 | 1400 | 2550 | 48.5 |
| 24052 CC/ W33 | 24052 CCK30/ W33 | 260 | 400 | 140 | 4 | 1760 | 3450 | 64.5 |
| 23152 CC/ W33 | 23152 CCK/ W33 | 260 | 440 | 144 | 4 | 2220 | 3900 | 90.5 |
| 24152 CC/ W33 | 24152 CCK30/ W33 | 260 | 440 | 180 | 4 | 2620 | 4800 | 110 |
| 22252 CAC/ W33 | 22252 CCK/ W33 | 260 | 480 | 130 | 5 | 2300 | 3550 | 110 |
| 23252 CAC/ W33 | 23252 CCK/ W33 | 260 | 480 | 174 | 5 | 2820 | 4750 | 140 |
| 22352 CC/ W33 | 22352 CCK/ W33 | 260 | 540 | 165 | 6 | 3050 | 4550 | 190 |
| 23956 CC/ W33 | 23956 CCK/ W33 | 280 | 380 | 75 | 2.1 | 845 | 1760 | 26 |
| 23056 CC/ W33 | 23056 CCK/ W33 | 280 | 420 | 106 | 4 | 1520 | 2850 | 52.5 |
| 24056 CC/ W33 | 24056 CCK30/ W33 | 280 | 420 | 140 | 4 | 1870 | 3800 | 68.5 |
| 23156 CC/ W33 | 23156 CCK/ W33 | 280 | 460 | 146 | 5 | 2300 | 4250 | 97 |
| 24156 CC/ W33 | 24156 CCK30/ W33 | 280 | 460 | 180 | 5 | 2670 | 5100 | 120 |
| 22256 CAC/ W33 | 22256 CAC/ W33 | 280 | 500 | 130 | 5 | 2350 | 3750 | 115 |
| 23256 CAC/ W33 | 23256 CACK/ W33 | 280 | 500 | 176 | 5 | 2820 | 4900 | 150 |
| 22356 CC/ W33 | 22356 CCK/ W33 | 280 | 580 | 175 | 6 | 3450 | 5200 | 235 |
