Pre-Insulated and Non Insulated Terminal and Connector Crimping Pliers and Tools

Pre-Insulated and Non Insulated Terminal and Connector Crimping Pliers and Tools

bargain

add to cart

Ratchet Terminal Crimping Tools (Pre-Insulated and Non Insulated Terminal and connector Crimping Pliers and Tools) :
1, The components of the ratchet cirimping tools are made of special steel.
2, Designed according to human factors engineering, it can save 50% energy when crimping.
3, Precise crimping die sets and integral lock with self releasing machanism ensure high-quality crimping effect after crimping repeatedly.
4, Accurate adjustment before ex works delivery
5, Due to best handle grasping position, light and compact structure and handle design ensure perfect crimping effect.


Type Work Range Design Picture Terminal design Capacity Standard Length Weight

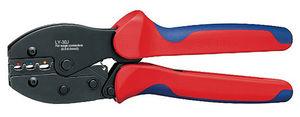

LX-30J Insulated Terminals and Connectors Bitmap Bitmap Bitmap 0.5-1.5mm² 2.5mm² 4-6mm² 20-16AWG 14AWG 12-10AWG 230mm 0.6kg
LX-03C Bitmap Bitmap Bitmap 230mm 0.6kg
LX-101 Non Insulated Terminals Bitmap Bitmap Bitmap
1.0-10mm² 17-7AWG 230mm 0.6kg
LX-10 Bitmap Bitmap 1.5-6mm² 17-10AWG 230mm 0.6kg
LX-03B Uninsulated receptacles and Tab 4.8mm, 6.3mm, 7.8mm Width Terminals Bitmap Bitmap Bitmap 0.5-6mm² 20-10AWG 230mm 0.6kg
LX-05FL/ 06FL Tab 90° Flag Terminal Bitmap Bitmap Bitmap 4.8mm² / 6.3mm² 3/6AWG 230mm 0.6kg
LX-07FL Insulated 90° Flag Terminal Bitmap Bitmap Bitmap 0.5-1.25mm² / 1.5-2.5mm² 20-18AWG/ 16-14AWG 230mm 0.6kg
LX-336N Non Insulated Terminals Bitmap Bitmap Bitmap 1.5-10mm² 20-8AWG 230mm 0.6kg
LX-04WF/ 06WF Wire Ferrules, End Sleeves Bitmap Bitmap Bitmap 0.5-4mm² / 0.5-6mm² 20-12AWG/ 20-10AWG 230mm 0.6kg
LX-16WF Bitmap Bitmap Bitmap 6-16mm² 10-5AWG 230mm 0.6kg
LX-25WF Bitmap Bitmap Bitmap 10-25mm² 8-3AWG 230mm 0.6kg
LX-35WF Bitmap Bitmap Bitmap 10-35mm² 8-2AWG 245mm 0.6kg
LX-26TW Twin End Sleeves Bitmap Bitmap Bitmap 2*0.5-6mm² 2*20-10AWG 235mm 0.6kg
LX-04WFL Wire Ferrules, End Sleeves Bitmap Bitmap Bitmap 1-6mm² 18-10AWG 230mm 0.6kg
LX-06WF2C Pre Insulated Terminal and Insulated Terminal Bitmap Bitmap Bitmap 0.5-6mm² / 0.5-2.5mm² 20-10AWG/ 20-14AWG 245mm 0.6kg
LX-02H Crimping RG Type cable Bitmap Bitmap Bitmap 6.5mm² / 5.4mm² / 1.72mm² 230mm 0.6kg
LX-05H Crimping RG Type cable Bitmap Bitmap Bitmap 8.1mm² / 6.5mm² / 5.4mm² / 2.6mm² / 1.72mm² 245mm 0.6kg
LX-336J Crimping RG Type cable Bitmap Bitmap Bitmap 1.07mm² / 1.72mm² / 1.98mm² / 3.25mm² / 3.84mm² / 4.52mm²
LX-336C Crimping RG Type cable Bitmap Bitmap Bitmap 1.73mm² / 5.41mm² / 8.10mm²
LX-457 Crimping RG Type cable Bitmap Bitmap Bitmap 11mm² / 8.2mm² / 5.4mm²
LX-156 Crimping of turned contacts plug Bitmap Bitmap Bitmap 0.5-6mm² 20-10AWG 250mm 0.6kg
LX-157 Airlines of turned contacts plug Bitmap Bitmap Bitmap 0.5-6mm² 20-10AWG 250mm 0.6kg
LX-01A Connector special pliers Bitmap Bitmap Bitmap 6.0mm² 10AWG 230mm 0.6kg
LX-02A Connector special pliers Bitmap Bitmap Bitmap 6.0mm² 10AWG 230mm 0.6kg
LX-98 Crimping RG Type Cable Bitmap Bitmap Bitmap Use to attach F connector to RG6 coaxial cable. Nickel Plated steel with insulated, cushioned handles. High leverage for tighter crimps.
LX-103 Close End Terminals Bitmap Bitmap Bitmap 0.5-6mm² 20-10AWG 230mm 0.6kg
