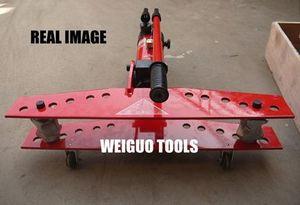

SWG-2 hydraulic pipe bender and tube bending tool
bargain
add to cartSWG-2 hydraulic pipe bender and tube bending tool, for copper pipe, steel tube, plastic water pipe and coated tubes
-It is suit for common water pipe, wire pipe, carbon steel pipe, conduit tube, bending the angle 90
-1/2'-2 can be shaped 90 one time, 2 1/2 – 4 can reach suitable radian which must remove pipe and bend pipe five times.
-The upper plate of the new design is cut by one time, it won't be broken.
| MODEL | MAX.PRESSURE (TON) | MAX.STROKE (MM) | WORKINGRANGE | DIES (INCH) | WALL THICKNESS (MM) | PACKING SIZE (CM) | WEIGHT (KG) /UNIT |
| SWG-3B | 19 | 320 | Φ21.3-88.5 MM | 1/2', 3/4', 1', 1 1/4', 1 1/2', 2', 2 1/2', 3' | 2.75-5 | 92*40*23 | 100 |
| SWG-4C | 21 | 370 | Φ21.3-108 MM | 1/2', 3/4', 1', 1 1/4', 1 1/2', 2', 2 1/2', 3', 4' | 2.75-6 | 118*43*25 | 155 |
| SWG-1A | 6 | 150 | Φ10-25 MM | 3/8', 1/2', 3/4', 1' | 1.5-3.5 | 42*37*11 | 16 |
| SWG-2 | 9 | 250 | Φ21.3-60 MM | 1/2', 3/4', 1', 1 1/4', 1 1/2', 2' | 2.75-4.5 | 73*32*20 | 47 |
| SWG-3 | 19 | 320 | Φ21.3-88.5 MM | 1/2', 3/4', 1', 1 1/4', 1 1/2', 2', 2 1/2', 3' | 2.75-5 | 95*40*23 | 98 |
| SWG-4 | 21 | 370 | Φ21.3-108 MM | 1/2', 3/4', 1', 1 1/4', 1 1/2', 2', 2 1/2', 3', 4' | 2.75-6 | 118*46*32 | 149 |
| SWG-25 | / | / | Φ10-25 MM | 3/8', 1/2', 9/16', 5/8', 3/4', 7/8', 1' | 0.8-2.0 | 64*25*16 | 24 |
| SWG-22 | / | / | Φ6-22 MM | 1/4', 5/16', 3/8', 1/2', 5/8', 3/4', 7/8' | 1.0 | 52*31*40 | 4.5 |
| SWG-22A | / | / | Φ6-22 MM | 1/4', 5/16', 3/8', 1/2', 5/8', 3/4', 7/8' | 1.0 | 52*31*40 | 5 |
