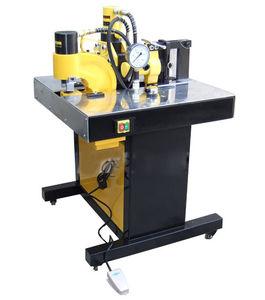

Multi-function Busbar Processor for Punching/ Bending/ Cutting

Series Multi-Function Busbar Processor Machine with three functions used for cutting, punching and bending.

This machine is the light of foreign advanced products, combined with the actual situation in china, in order to improve work efficiency, To save hours of work, while the design and manufacture.

Suitable for transmission and distribution in a large workshop and site work, construction, and power distribution cabinets and switch cabinets, etc. The use of electrical appliances factory.

The machine is equipped with: bending, cutting, punching functionality. Optional foot switch or wire switch, easy to operate.

Model	DHY-150	DHY-200
Functions	With three functions: cutting, punching, bending	With three functions: cutting, punching, bending
Input voltage/ control voltage	Single phase 50HZ, 220V	Single phase 50HZ, 220V
Rating working oil pressure	700Kgf/ cm2 (over pressure safety valve setting valve)	700Kgf/ cm2 (over pressure safety valve setting valve)
Outlet force of busbar cutter	15T	20T
Busbar cutting capability	Copper busbar / Aluminum busbar 150mm*12mm	Copper busbar / Aluminum busbar 200mm*12mm
Outlet force of puncher	31T	35T
The distance between hole centre and busbar edge	95mm	110mm
Punching capability-copper busbar / aluminum busbar	φ6-φ20.5Max. Thickness: 10mm	φ6-φ20.5Max. Thickness: 12mm
Standard assembled punching dies	φ7, φ9, φ10.5, φ13.8, φ17.5, φ20.5mm	φ7, φ9, φ10.5, φ13.8, φ17.5, φ20.5mm
Outlet force of bender	20T	20T
Horizontal bending capability	150*12mm	200*12mm
Weight	170Kg	195Kg
Dimension of moveable workbench	6560110cm	8075110cm
