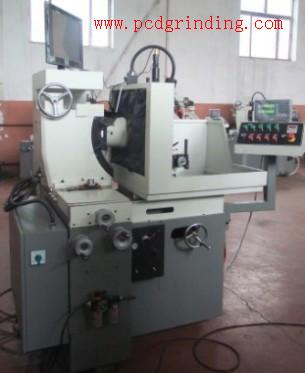

PCD grinding machine:
GSMBT-2 (GSM150) |
Cross table |
Specification | 155*218mm |
Tip radius | 0-60mm |
Rotation angle | 240° |
Movements itinerary | 80mm |
Grinding pressure | 450N (adjustable) |
Handwheel division | 0.001mm/ 1division |
Wheel head |
Spindle speed | 1000RPM- 4000RPM (infinitely variable) |
Grinding wheel size | 150*40*40mm |
Wheel oscillation frequency | 0-60/ min (infinitely variable) |
Wheel oscillation stroke | 25mm (infinitely variable) |
Wheel swing stroke | -75mm-+75mm |
Wheel's tilting angle | -5˚~+25˚ |
CCD camera monitoring system |
Amplification factor | 20-180 times |
Lens | RD |
Display | LCD |
The distance move to the wheel | 50mm |
The accuracy feed to the wheel | 0.01 |
Z-axis moving distance | 50mm |
Z-axis feed accuracy | 0.01 |
Motor |
Main motor | 1000r.pm/ 2.2KW 4000r. p. m/ 2.5KW |
Swing motor | 0.25KW |
Pump motor | 50W |
Spindle inner cold water pump motor | 50W |
Machine dimension | 1600*1500*1800mm |
Machine weight | About 1600kg |
Standard spare parts |
Tool stand | Diamond wheel |
Quick clamping fixture | Nut for T-slot |
Gasket | |
Special accessories (options) | |
Universal grinding device (reamer) | Negative chamfering fixture |
Universal clamping fixture | |
