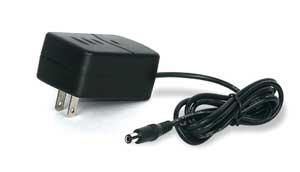

18W Plug-in Type
DESCRIPTION: Designing and manufacturing in accordance with RoHS, and the standard of CEC low power consumption; small size, streamline, hermetical; compact design and perfect assemblement; High reliability, light, safe. 1. Output: output voltage: 5―24VDC Hold up time: 8ms at 100VAC Inrush current: 30A max Ripple&noise: 1%peak-peak max 2. Working Enviroment: Working Temperature 0℃~+40℃ Storage Temperature -20℃~+75℃ Working Humidity 15~90%RH Storage Humidity10~95%RH 3. Reliability: Insulation: 3000Vac/ 10mA 1min 3000Vac/ 10mA 1min Case Insulation Resistance: Input-Output≥100 MΩInput-output case 100MΩ 4. Protection: Over voltage, over current and short circuit protection, thermal shutdown Capacity. 5. Enviromental Protection: Green design, satisfying CEC, IV standard Cooling: Nature 6. Safety Standard: UL60065/ UL60950; EN60065/ EN60950; IEC60065/ IEC60950 7. EMC: EN55013/ EN55020; EN55022/ EN55024; EN61000-3-2 EN61000-3-3; FCC: Part 15 |
