1, The machine adopts PLC control, plus CNC module, man-machine interface dialogue operation, easy to program and easy to set.

2, free to choose, manual, semi-automatic, slow corners, slow Pulling function.

3, Feeding (Y), corner (B) servo control, elbow (C) for the hydraulic drive.

4, program settings, each file can be set to 20 automatic feeding, automatic corner and 20 bend angle, it can store 100 groups of memory files.

5, in the process is displayed on the touch screen mobile controller feeding, corner, bend processing present value, also set the single-step operation, half-cycle operation, the entire cycle of operation.

6, with automatic detection errors and faults function, when there is any abnormal movement or the presence of any danger the machine will immediately stop the alarming issue, show the cause, help operators troubleshoot

Characteristics II:

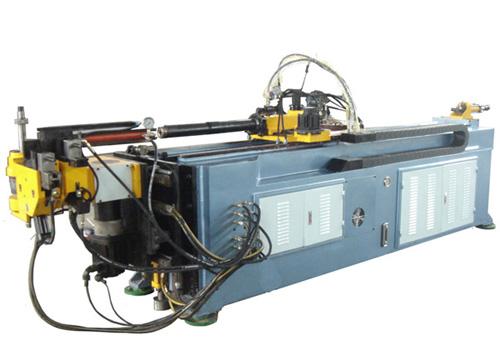

DWCNC-TSR and TDR-dimensional type CNC hydraulic bending machine using the elbow as the hydraulic drive, feed, corner three-dimensional numerical control servo control bender having elbow power, three-axis control high-precision, all the programming and Enter both operate directly on the interactive touch screen, all the information described can choose Chinese or English display, operation is extremely easy, fast, and accurate.

Among high performance type bender, ease of operation of the controller, so that your operation and program settings easier, versatile, use and mass production or standardized products, such as automobiles, motorcycles, and other parts, such as exhaust pipes , seats, bumpers, sports equipment and all of the iron pipe furniture.

This machine is suitable for a small, medium and large volume production machines. High-performance, high precision and stability characteristics. Is a dependable high-speed automatic 3D CNC bending machine. (Bend, corner, feeding) operation is extremely convenient, and that the most difficult work to ensure optimal effect.

Project Parameters	unit	DW38CNC-TSR
The maximum bending capacity iron tube Stainless steel tube	Diameter * wall thickness Diameter * wall thickness	Φ38*2 Φ38*1.8
Maximum bending radius	mm	200
The maximum effective distance of mandrel	mm	2200
Feed (A) Operating speed Gatling (B) Gatling (C)	mm / s	250-600
	Degrees / sec	30-210
	Degrees / sec	100
Bending angle	degree	0-185
Rotation angle	degree	360
Feed (A) Mechanical precision Gatling (B) Gatling (C)	mm	±0.10
	degree	±0.10
	degree	±0.15
Motor Power	kw	4
Machine Package Size	mm	3000*900*1300
Machine weight	Kg	1950
