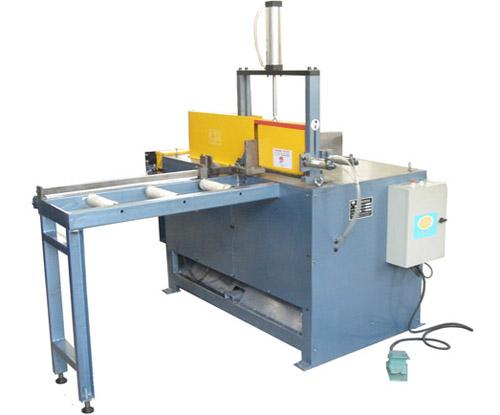

Cape Lida | CS600AL aluminum cutting machine

Cape Lida | CS600AL aluminum cutting machine

bargain

add to cart
1, the cutting machine uses hydraulic actuators, pneumatic clamping, can reduce the deformation profiles
2, with linear guides, linear motion cutting, improve accuracy section
3, one can be a single or multi-branch sawing, small batch or mass production are appropriate.
4, automatic injector, cut no edges, cutting more durable
5, front rack, using the fine adjustment mechanism, more accurate positioning .

model
CS600AL
Cutting angle
90°~45°
Maximum cutting width
400mm
Maximum cutting height
220mm
Cutting accuracy
± 0.15mm
Motor speed
2850
Applicable Blade size
Φ25.4*5*600*100T
Main切马达
5.5kw
Motor Power
5kw
air pressure
4-6Mpa
Table size
805 * 1500mm
