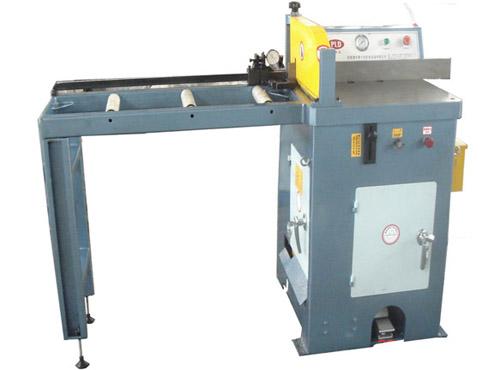

CS455AL aluminum cutting machine | Cape Lida

CS455AL aluminum cutting machine | Cape Lida

bargain

add to cart
A mechanical characteristics
• Hidden blade can safely down to work to solve the traditional aluminum shavings flying machine ills and improve the working environment .
• automatic injector, cut no edges, the blade is more durable.
• One can be single or multi-branch sawing, small batch or mass production are appropriate.
• You can make a 45 ° angle .
Second, the main technical parameters
Technical Parameters:
Parameters of the project
455AL
Maximum cutting width
260mm
Cutting angle
90°-45°
Maximum cutting height
120mm
Accuracy
±0.15
Voltage
380V
Motor speed
3000
Applicable saw blade
Outer diameter φ400, φ450 hole φ25.4 alloy inserts foot blade
Total power
4kw
Rated pressure ( pneumatic)
0.6mpa
Machine dimensions
890 * 740 * 1350mm
