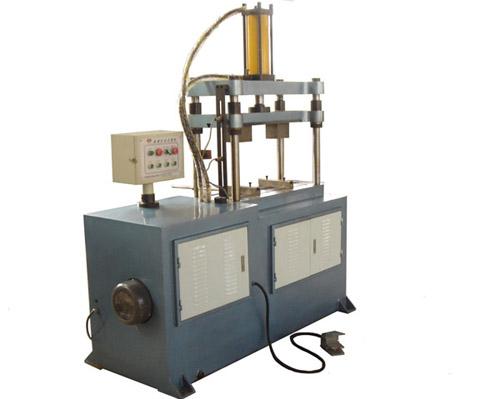

Bending machine Mechanical characteristics:

1, change the transfer mode to bend principle stamper, driving more direct, more compact structure ;

2, the vertical direction bending die, greatly extends the elbow space ;

3, bending process without clamping, and specially designed ejection mechanism, put, easy to take, bend short cycle, high efficiency ;

4, mainly processing applied to bend span, or how the various sections of the bending angle ;

5, is a necessary complement to the series of single, double-headed hydraulic pipe bender ;

6, one can suppress two or more.

Performance	specification
The maximum capacity of a single elbow	Round : Φ38 steel plate : thickness * width 50 12
Maximum bend angle	105°
The maximum open file	750mm
Maximum stroke	250mm
Maximum system pressure	12Mpa
Pump displacement	19L / min
Fuel tank capacity	105L
Motor Power	4kw
Weight	1200kg
