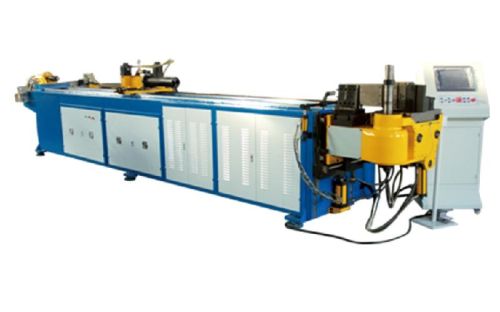

1, DW120CNC-TSR automatic single molding equipment used CNC bending machine control, feeding, corner two-axis servo motor and servo drive control drive, hydraulic elbow (elbow can be changed according to customer needs servo hydraulic pipe) .
DW120CNC-TDR automatic double bending machine molding equipment using CNC control, feeding, corner, elbow-axis servo motor and servo drive control drive, hydraulic and down about retooling.
2, can be set to manual, semi-automatic, fully automatic operation.
3, automatic bending, automatic feeding, automatic tilting angle and can be controlled manually bend forming.
4, the operation panel with touch screen, menu input / operation screen display text in Chinese, other languages ​​as an alternative.
5, pipe fittings data can be X, Y, Z three-dimensional coordinate values ​​entered directly and automatically converted into Y, B, C processing or direct input Y, B, C actual process value.
6, data editing is complete with a key lock feature off.
7, with power and memory function, automatic computer memory location features.
8, can be used manually decomposition jog operation, observation interference point, easy to modify action bend test.
9, can be set to feed every bend, bend back, turn the tube dynamic triaxial same or different move, to avoid interference points. And has at least eight ways to choose the sequence of motion.
10. The position can be set to be expected, the safety position, position wheel mode interference, guided mode interference position, etc., with procedures and mechanical limit shutdown protection.
11. piece counting function.
12. At the same zero-axis capabilities to reduce processing time and increase productivity.
13. failure, automatically detect error or machine malfunction detail malfunction of shortening repair work on the screen.
14. The manual can automatically detect an error indication, displays all unusual messages and instructions disposal in order to avoid human error and damage to the machine.
15. The single elbow piece of information can be stored individually.
16. The controller uses PLC electric control template computer, the maximum memory capacity of not less than 200 store program instructions.
17. All signal lines to be shielded from each other to avoid signal interference affect the program action.
