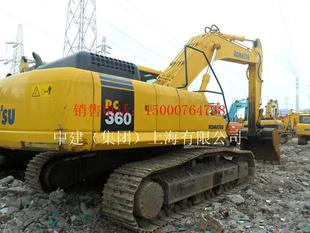

Komatsu PC360-7 crawler excavator
project
Unit PC360-7
Operating weight kg33000
Rated Power PS (kW) 245 (180)
Standard bucket capacity m31.6
performance
Maximum travel speed
Speed ​​km / h5.5
Speed ​​in km / h4.5
Low speed km / h3.2
Bucket digging force (maximum) Kgf23100
Stick digging force (maximum) Kgf17400
size
Full-length mm11140
Full width mm3190
Full height mm3280
Scope of work
The maximum digging height mm10210
Maximum unloading height mm7110
Maximum digging depth mm7380
Maximum vertical digging depth mm6480
Maximum digging radius mm11100
The maximum digging radius mm10920 ground plane
engine
name-
Komatsu SAA6D114E
Rated speed rpm1900
Displacement ltr8.27

Performance parameters:
1. Excellent performance to achieve a large amount of work
Large-capacity, high wear Bucket
The overall height of the machine control functions to maximize the potential of the machine excavated
Strengthening boom, arm and turntable achieve the strong mining and fast walking
2. High durability and reliability ensure long-term stability of construction machinery
Rugged machine designed to ensure a strong mining and fast walking
The oil filter to protect the engine, fully adapt to Chinese market
Boom, stick and bucket strength is further improved to meet the construction requirements of the user long high intensity
3. safe and comfortable cab, long-term operation is not easy fatigue
Low-noise design, reducing the driver's ear noise
The new shock absorber, significantly reducing the vibration at the driver's seat
External air introducing large-capacity automatic air conditioning, cab more comfortable temperature year round
