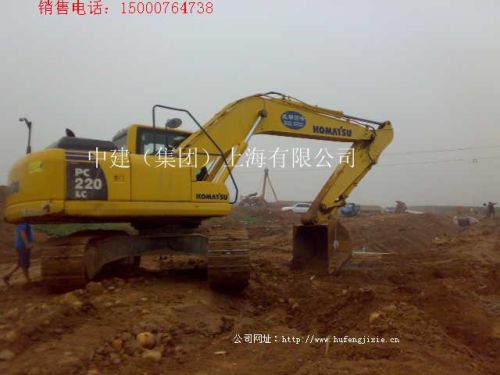

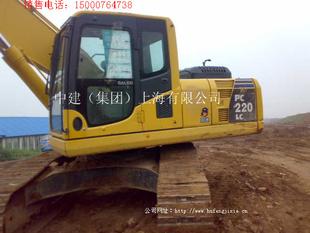

Komatsu PC220-8 crawler excavator
Unit PC220-8
Operating weight kg 23100
Rated Power PS (kW) 170 (125)
Standard bucket capacity m 1.0
Walking speed performance speed km / h 5.5
Speed ​​in km / h 4.2
Low speed km / h 3.1
Bucket digging force (maximum) kg 17500
Stick digging force (maximum) kg 13200
Size Length mm 9885
Full-width mm 2980
Full height mm 3055
Working range Maximum digging height mm 10000
Maximum unloading height mm 7035
Maximum digging depth mm 6920
Maximum vertical digging depth mm 6010
Maximum digging radius mm 10180
Maximum digging in the ground plane radius mm 10020

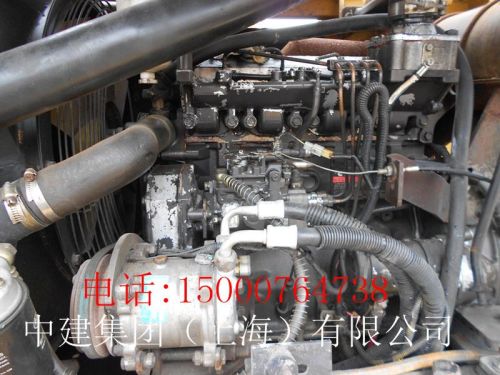

Engine name - SAA6D107E-1
Rated speed rpm 2000
Displacement l 6.69

Performance parameters:
1. Reliability and durability
Komatsu engine six-cylinder engine continues the consistent advantages
Meet user requirements boom, bucket and arm
Juxtaposed cooling system, heat better
2. Safety comfortable cab
Rugged cab has excellent sound absorption ability
Cab with better durability and impact resistance
High damping cab, vibration
3. The scientific and reasonable configuration design
Easily accessible oil filter and fuel drain valve
