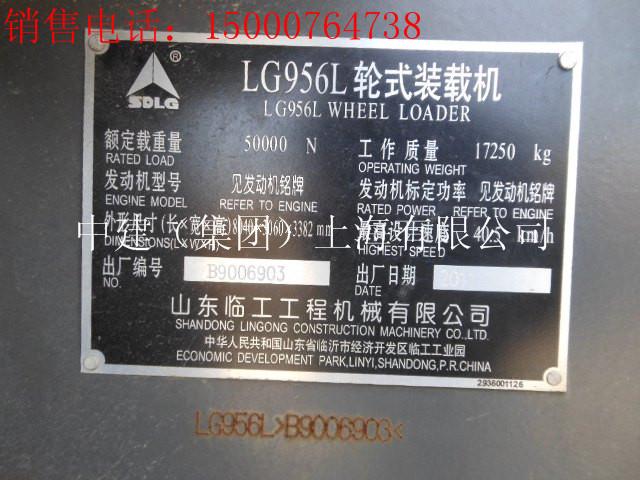

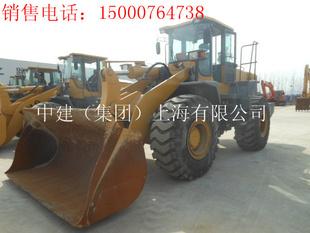

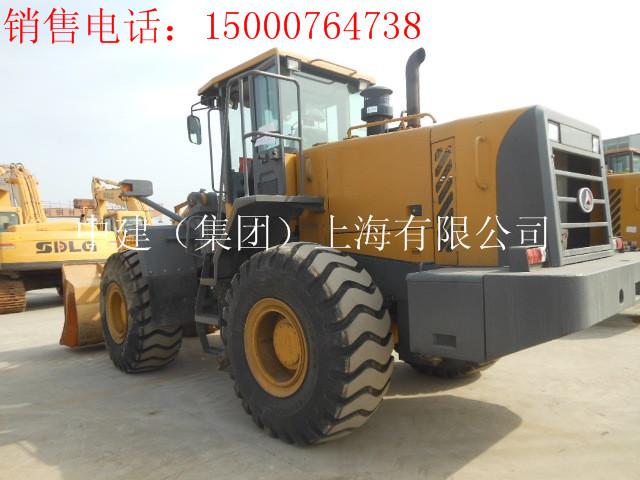

5 tons Shandonglingong LG956L level mine shovel wheel loader
The number of parameter values
Machine work quality 17250kg
Rated bucket capacity 2.7m3
Rated load 5.0t
Maximum traction ≥160kN
The maximum breakout force ≥180kN
Maximum gradeability 30 °
Maximum unloading height 3190mm
Unloading distance corresponding to 1100mm
Overall dimensions (L * W * H) 8040 * 3060 * 3382mm
Features:
Temporary workers LG956L mining shovel wheel loader, the machine has superior traction, increasing the torque converter to the engine to accommodate the best match, insert the stockpile of super-power

Over 16.5 tons; the configuration of large-bore bucket cylinder, up to 18.3 tons breakout force, lift cylinder configuration of large-bore, ground lifting force reached 16.3 tons; machine with ultra

Strong stability, long wheelbase, increased counterweight design, job straight tipping load of more than 12.5 tons; high-strength structural components capable of performing more complex conditions, box type

Hinged frame, after 200,000 times of fatigue intensified test, still work reliably.

`Use Weichai Steyr engine, strong power, high torque reserve, low fuel consumption, low noise, reliable performance, horizontal type air filter, easy maintenance.
`Use LG50 power shift planetary gearbox, compact, long life gear using new dampers to improve the damping effect.
`Selection of performance, mature technology temporary workers 5-ton reinforced drive axle, to withstand force, reasonable and reliable High, front and rear axle load distribution, increased wheelbase, vehicle

High stability.
`Standard rock bucket surgeon using high-strength wear-resistant plate, bucket bottom, a rear wall reinforcement according to shovel all conditions, the use of welding casement type bucket teeth, bucket teeth Standard

Small wear plates, mine better performance.
`Whole structure finite element optimization design, through the 200,000 times of fatigue intensified test, the front and rear frame uses plate structure, the whole center of gravity distribution is reasonable, bearing

Load capacity, high strength and good stability.
`Configure large bucket cylinder bore, shovel digging force of up to 18.3 tons! Configure big lift cylinder bore, ground lifting force reached 16.3 tons!
`Front wheels, 18-level mine dedicated tire, more adapted to the complicated road.
`Optimized radiator structure, increasing the effective heat dissipation area, optimizing the entire cooling system inlet and outlet duct design, effectively reduce the engine water temperature and hydraulic systems

Oil, improve the overall cooling efficiency.
