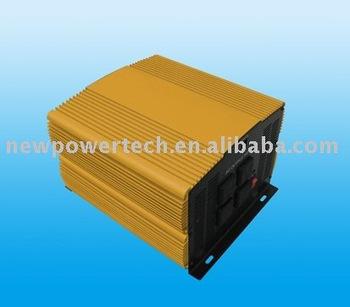

Quick Details

• Place of Origin: Guangdong, China (Mainland)

• Brand Name: OEC

• Model Number: NP8EBC0 (3000W)

• Output Power: 3000W

• Output Type: Modified Sine Wave

• Size: 417*230*158mm

• Weight: 6.98kgs

• Input Voltage: 12V

• Output Voltage: 220V

• Type: DC/ AC Inverters

• Output Frequency: 60±3Hz

• Output Current: ≤3.5AMP

• 3000W: Modified sine wave power inverter

Packaging & Delivery

Packaging Details:	WHITE BOX, GIFT BOX
Delivery Detail:	30 days

Specifications

Modified Sine Wave Power Inverters
1. Outstanding overload capability
2. Remote available
3. Perfect compatible with generator

DC to AC 3000W Solar Modified Sine Wave Power Inverter with Remote Capability USB Capability

Modified sine wave power inverter is specially designed for home appliance, Solar electric energy generation, Wind power generation, Communication equipment, Industrial intellectual control system

♣Test conditions:
1) Operating temperature: 23°C±2°C
2) Operating relative humidity: 40-90% RH
3) Input: DC 12.8V

♣Output

1) Output AC voltage (at DC 11-15V input) : AC 115V±10% RMS

2) Output frequency level: 60±3Hz

3) Max. continuous output power: 3000W
4) Surge capability peak output power: 6000W
5) AC output wave form: modified sine wave

♣ Input

1) DC input static current (no load) : ≤3.5AMP
2) DC input over load current: ≤300-350AMP
6) Normal input voltage range: 11-15V

♣Protection part

7) High voltage cut off level: ) 15V
8) Low voltage alarm: 10.5V±0.5V
9) Low voltage cut off level: 10.2V±0.5V
12) Overload power range: 3000W, 5-30%
13) Hi-pot test: PRI/ sec, 3500V/ AC 5MA/ 3s
14) Temperature protection: (65°C
15) Max.output efficiency: 90%
16) AC output short circuit protection: system shut down (no damage)
17) Fan run: inner temperature rising up is ≥45°C
18) Fault warning: alarm beep
19) LED indicator:
a) Normal: green
b) Fault: red green
20) Fuse (spade type) : 25A x 16pcs
21) Environmental condition:
a) Operating temperature: 0-40°C
b) Operating relative humidity: 10-90% RH
c) Storage temperature: -10-50°C
d) Storage relative humidity: 10-95% RH
