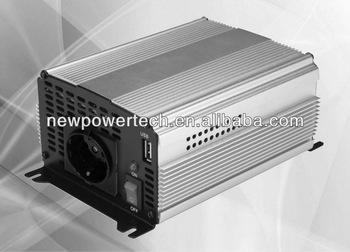

Quick Details

• Place of Origin: Guangdong, China (Mainland)
• Brand Name: OEM
• Model Number: 1000W
• Output Power: 500 - 1000W
• Output Type: Pure Sine Wave Power Inverter machine
• Size: 295 x 210 x 90mm
• Weight: 2.9kgs
• Input Voltage: 12V
• Output Voltage: 220V
• Type: DC/ AC Inverters
• Output Frequency: 50±3Hz
• Output Current: AC 230V±10% RMS
• 1000W: Pure Sine Wave Power Inverter machine

Packaging & Delivery

Packaging Details:	WHITE BOX, GIFT BOX
Delivery Detail:	45 days

Specifications

1) DC12V to AC220-240V
2) Continuous output power: 1000W
3) AC output wave form: pure sine wave form
4) Temperature protect

Test conditions:
1) Operating temperature: 23°C±2°C
2) Operating relative humidity: 40-90% RH
3) Input: DC 12.8V
Specifications (based on test conditions above) :
1) Max. continuous output power: 1000W
2) Surge capability peak output power: 2000W
3) DC input static current (no load) : ≤1AMP
4) DC input over load current: ≤100-120AMP
5) AC output wave form: pure sine wave
6) Normal input voltage range: 11-15V
7) High voltage cut off level: ) 15V
8) Low voltage alarm: 10.5V±0.5V
9) Low voltage cut off level: 10.0V±0.5V
10) Output AC voltage (at DC 11-15V input) : AC 230V±10% RMS
11) Output frequency level: 50±3Hz
12) Overload power range: 1000W, 5-30%
13) Hi-pot test: PRI/ sec, 1500V/ AC 5MA/ 3s
14) Temperature protection: (65°C
15) Max.output efficiency: 90%
16) AC output short circuit protection: system shut down (no damage)
17) Fan run: inner temperature rising up is ≥45°C
18) Fault warning: alarm beep
19) LED indicator:
a) Normal: green
b) Fault: red green
20) Fuse (spade type) : 25A x 5pcs
21) Dimensions (L x W x H) : 295 x 210 x 90mm
22) Environmental condition:
a) Operating temperature: 0-40°C
b) Operating relative humidity: 10-90% RH
c) Storage temperature: -10-50°C
d) Storage relative humidity: 10-95% RH
