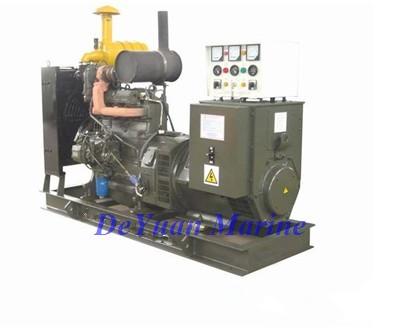

120KW DEUTZ Marine Generator Set:

Genset features:

Rated speed/ frequency: 1500rpm/ 50HZ

Continuour output: 120kw/ 150KVA

Standby output: 132KW/ 165 KVA

Voltage, phase and wire: 400v/ 230v, 3 phase and 4 wires

Rated power factor: 0.8

Maximum output current: 85 (A)

Engine details:

Model: TBD226B-6D5 (Deutz engine)

Engine type: water-cooled, 3cylinders in line, 4stroke

Maximum output: 132kw

Bore*stroke: 105*120 (mm)

Fuel consumption: 30.3L/ H (in full load)

Alternator details:

Alternator brand: stamford

Excitation: brushless

Protection class: IP23

Efficiency: 88%

Voltage adjust range: �±6%

Steady state voltage regulation: ≤±1%

Voltage control: AVR
