Cylindrical Rubber Fender

bargain

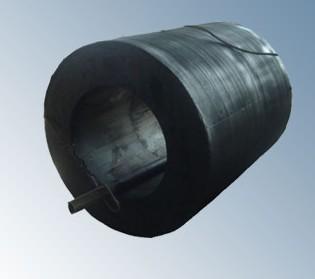

Cylindrical Rubber Fender :

CY Series Cylindrical Fenders are commonly used fenders recommended for all types of

applications to ensure a safe and linear berthing to a variety of vessels. Adequate installation

is simply achieved by using chains, bars, ropes or specially designed ladder brackets.

Their progressive reaction makes them ideal for berths serving large and small vessels.

The wide range of available sizes (as well as almost any intermediate size) means cylindrical f

enders can be closely matched to each application.

Their proportional increase of reaction force and energy absorption all the way to the rated

deflection is an advantage resulting in softer berthing.

Cylindrical Rubber Fender Applications:

1.Bulk cargo berths

2.Fishing and workboat berths

3. General cargo quay

4. Pontoons and floating structure

5. RoRo and ferry terminals

6. Tug boats and havens

Model	Outer diameter D (mm)	Inner diameter D (mm)	Performance (every meter length) at 50%compression
			Standard type		High reaction force type		Reference Weight (kg/ m)
			Reaction force (kn)	Energy Absorption (KN.M)	Reaction Force (KN)	Energy Absorption (KN.M)	Reference Weight (kg/ m)
CY150*L	150	75	46	1.5	74	2.3	15
CY200*L	200	100	62	2.7	97	4.3	28
CY250*L	250	125	75	4.2	123	6.6	45
CY300*Y	300	150	92	6	146	9.7	64
CY400*L	400	200	122	10.6	195	17.2	110
CY500*L	500	250	152	16.4	245	27	175
CY600*L	600	300	182	24.1	293	38.2	250
CY700*L	700	350	212	32.2	342	53.3	345
CY800*L	800	400	244	42.3	390	69.20	450
CY900*L	900	450	275	53.2	440	87.30	570
CY1000*L	1000	500	305	65.4	490	108.2	710
CY1200*L	1200	600	375	97.2	588	155.4	1020
CY1400*L	1400	700	434	130.3	685	216.2	1400
CY1600*L	1600	800	495	173.5	785	276.4	1800
Remarks: Can be customized in various length

More Cylindrical Rubber Fender can be offered, pls contact us for more details
