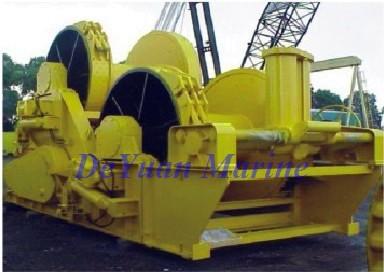

Anchor windlass\towing winches
Anchor windlass/ towing winches
Anchor windlass/ mooring winches
Features:
*Anchor windlass chain size: 16 to 97mm
*Anchor windlass/ mooring winch: up to 200T brake holding
*Anchor windlass/ towing winch: up to 300T brake holding
*Towing winch: up to 300T brake holding.
Technical Details:
| Anchor windlass/ towing winches; anchor windlass/ mooring winches | ||
| Model | AWT-16~97 | AWM-16~97 |
| Drive | Hydraulic or electric | |
| Type | Single or double gypsy/ single or double drum | |
| Dia. Chain | φ16~97mm (U2, U3) | φ16~97mm (U2, U3) |
| Rated load | 10KN~447KN | 10KN~447KN |
| Drum load | 10N~2000KN | 10N~2000KN |
| Drum brake load | 50KN~3000KN | 50KN~3000KN |
| Drum capacity | 100~1000m | 100~1000m |
| clutch | Hydraulic/ handle operated jaw type | |
| Brake | Spring loaded hydraulic release/ handle operated type | |
| Power required | 4~160kw | 3.5kw~132kw |
| control | Local control& remote control in wheelhouse | |
| option | Length& tension monitoring system, stainless steel lined on drum brake band. Chain stopper. | |
