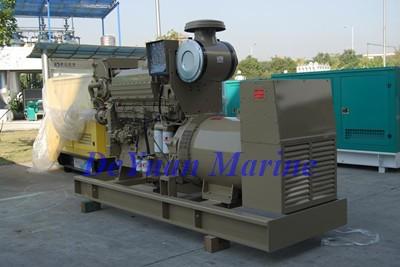

250KW Cummines Generator set for marine

250KW Cummines Generator set for marine

bargain

add to cart

Cummins generator set features:

Genset Model: DY-CGM250A

Engine Model: NTA855-D (M) (Cummins engine)

Alternator Model: HCM4E

Rated Power: 250 KW

Standby Power: 275 KW

Rated Voltage: 380/220V, 400/230V, 415/240V, 440/254V

Frequency : 50 HZ

Power Factor: 0.8

Winding Connection: 3-phrase, 4-wire

Dimension (mm) : 3100*1000*1600

Net Weight: 2800 KG

Genset engine details:

Engine Model: NTA855-D (M)

Rated Power: 284 KW@1500rpm

Standby Power: 321 KW

Bore * Stroke (mm) : 140*152

Engine Type: 6 Cylinders, in Line, 14 L

Alternator details:

Alternator for CGM250A Generator Set

Alternator Brand

Stamford

Alternator Model

HCM4E

Frequency

50 HZ

Rated Votage

380/220V, 400/230V, 415/240V, 440/254V

Winding Connection

3-phrase, 4-wire

Power Factor (COS)

0.8

Stator Winding

Double Layer Concentric

Exciting Method

Brushless Self-exciting

Insulation System

Class H

Protection Class

IP23

Winding Leads

12

Winding Pitch

Two Thirds

Voltage Regulation

± 1.0 %

Waveform Distortion

(1.5% (no load)

Maximum Overspeed

2250 Rev/ Min

Telephone Interference (THF)

2%
