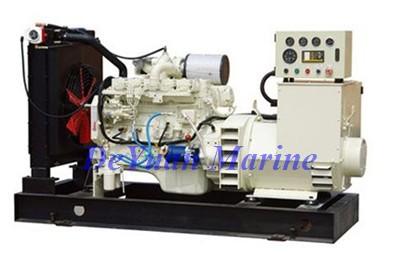

800KW marine cummins genset

800KW marine cummins genset

bargain

add to cart

Marine Generator Set (cummins engine brand) :

800kw Marine Cummins Genset features:

Genset Model: DY-CGM800A

Engine Model: KTA38-D (M)

Alternator Model: LVM634F

Rated Power: 800 KW

Standby Power: 880 KW

Rated Voltage: 380/220V, 400/230V, 415/240V, 440/254V

Frequency: 50 HZ

Power Factor: 0.8

Winding Connection: 3-phrase, 4-wire

Dimension (mm) : 4500*1540*2164

Net Weight: 8200 KG

Genset engine details:

Engine Model: KTA38-D (M)

Rated Power: 880 KW@1500 rpm

Standby Power: 970 KW

Bore * Stroke (mm) : 159*159

Engine Type: 12 Cylinders, V Type, 38 L

Alternator details:

Alternator for CGM800A Generator Set

Alternator Brand

Stamford

Alternator Model

LVM634F

Frequency

50 HZ

Rated Votage

380/220V, 400/230V, 415/240V, 440/254V

Winding Connection

3-phrase, 4-wire

Power Factor (COS)

0.8

Stator Winding

Double Layer Concentric

Exciting Method

Brushless Self-exciting

Insulation System

Class H

Protection Class

IP23

Winding Leads

12

Winding Pitch

Two Thirds

Voltage Regulation

± 1.0 %

Waveform Distortion

(1.5% (no load)

Maximum Overspeed

2250 Rev/ Min

Telephone Interference (THF)

2%

*Frenqucy Code: A=50Hz (1500rpm) , B=60Hz (1800rpm) . this table is for 50Hz Cummins Generator Set. (60Hz generator set could be provided on request) .
