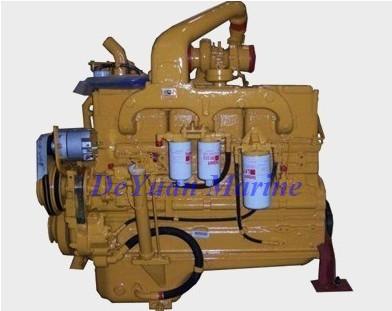

NT855 series 350HP Marine Cummins Engine:

General Engine Data:

Engine Model: NT855-M (350HP CUMMINS Engine)

Use: Commercial propulsion

Displacement: 14.0Litre

Bore*stroke: 139*152mm

Fuel system: PT

Cylinders: 6

Aspiration: Turbocharged/ aftercooled

Fining order: 1-5-3-6-2-4

Fuel system:

Fuel consumption:

Approximate Fuel Flow to Pump:

Fuel Rail Pressure Range:

Air system:

Intake manifold pressure: mm Hg (in. Hg) 940 (37)

Intake Air Flow: litre/ sec (CFM) 380 (800)

Heat rejection to Ambient: KW (BTU/ min) 33 (1900)

Minium Ambient Temperature for cold start (No Aids) : ℃ (�) 0 (32)

Exhaust system:

Exhaust Gas Flow (after turbine) : litre/ sec (CFM) 880 (1850)

Exhaust Gas Temperature (after turbine) : ℃ (�) 427 (800)

Cooling system:

Heat rejection to Engine Coolant: kw (BTU/ min) 220 (12500)

Engine water flow: litre/ min (GPM) 427 (113)

Raw water flow: litre/ min (GPM) 234 (62)

Pressure Cap Rating w/ Heat Exchanger: kPa (PSI) 103 (15)
