Marine Side Scuttles
Marine Side Scuttles :
We are leading supplier of marine outfitting equipment, such as marine steel doors, marine aluminum door, marine windows, marine hatch cover, marine pilot rope ladder, embarkation rope ladder, gangway ladder , bulwark ladder, Marine Side Scuttles, etc.
This Marine Side Scuttles is applied to marine ships and naval ships, and to the inland ships, too. The standard is equivalent to the international standard ISO1751

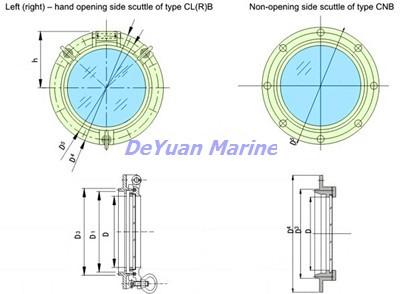

bolted side scuttle series
Marine Side Scuttles
| Model | Clear size D | D1 | D2 | D3 | D4 | D5 | Number of fasteners | Bolts for installation | Opening of casting wall | ||
| Deadlight | Glass holder | thread | quantity | ||||||||
| A | 200 | 245 | 204 | 250 | 350 | 310 | 2 | 3 | M16 | 8 | 253 |
| 250 | 295 | 254 | 305 | 400 | 364 | 2 | 3 | M16 | 8 | 308 | |
| 300 | 350 | 304 | 360 | 450 | 414 | 3 | 3 | M16 | 12 | 363 | |
| 350 | 400 | 354 | 410 | 500 | 464 | 3 | 3 | M16 | 12 | 413 | |
| 400 | 450 | 404 | 460 | 550 | 514 | 3 | 3 | M18 | 12 | 463 | |
More Marine Side Scuttles can be offered, pls contact us for more details
