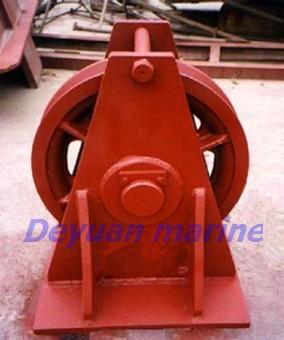

sheave fairlead

Wire size

Sheave

Dia. D (mm)

sheave fairlead

Dimensions (mm)

sheave fairlead

SWL (KN)

sheave fairlead

Mass (kgs)

(mm)

(Inch)

A

B

C

E

F

25

1

406

460

270

528

258

20

234

198

32

1-1/4

508

550

310

643

323

25

355

240

38

1-1/2

600

711

407

781

381

30

500

300

45

1-3/4

660

700

416

820

420

30

671

430

52

2

762

903

517

890

432

40

935

680

64

2-1/2

914

940

560

1120

580

40

1414

1050

Remark: build to withstand breaking strength of indicated rope at 90°sheave warp on sheave
