Rope Dia (mm)

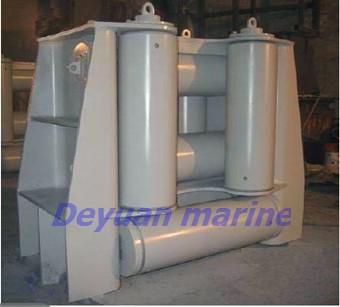

Universal fairlead roller Dimensions (mm)

A

B

C

D

E

F

G

H

K

12

180

100

620

80

710

914

160

370

170

16

230

130

778

100

878

1120

200

480

210

20

250

130

878

120

1086

1272

250

520

250

24

280

160

996

140

1236

1420

260

590

288

32

300

200

1190

180

1410

1678

340

752

366

40

40

400

250

1548

245

1760

2126

450

970

48

400

250

1720

300

1920

2400

470

1048

608

,Remark: 1. free on deck, welding into bulwark, for 2 ropes
