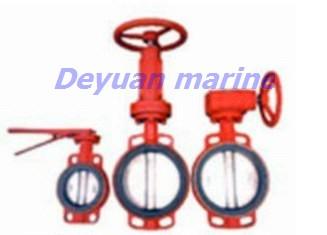

Butt-clamped Butterfly Valve
bargain
add to cartButt-clamped Butterfly Valve:
we can offer marine gate valve, marine globe valve, marine butterfly valve, marine check valve etc
Product standard: CB/ T, GB/ T, , JIS , DIN , API, ANSI, BS etc.
Butt-clamped Butterfly Valve Technical Details:
| Pn (Mpa) | Dn (mm) | Butt-clamped Butterfly Valve Structure dimension | ||||
| L | D | D1 | Z-Φd | H | ||
| 1.0 1.6 | 40 | 43 | 145 | 110 | 4-18 | 58 |
| 50 | 43 | 165 | 125 | 4-18 | 63 | |
| 65 | 46 | 185 | 145 | 4-18 | 70 | |
| 80 | 46 | 200 | 160 | 4-18/18-18 | 83 | |
| 100 | 52 | 220 | 180 | 8-18 | 105 | |
| 125 | 56 | 250 | 210 | 8-18 | 115 | |
| 150 | 56 | 285 | 240 | 8-22 | 137 | |
| 200 | 60 | 340 | 295 | 8-22 | 164 | |
| 250 | 68 | 395/405 | 350/355 | 12-22 | 206 | |
| 300 | 78 | 445/460 | 400/410 | 12-22 | 230 | |
More Butt-clamped Butterfly Valve can be offered, pls contact us for more details
