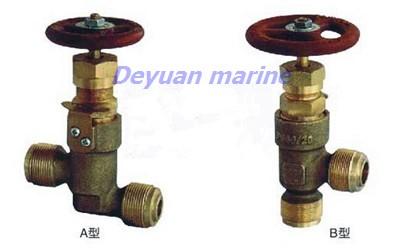

Marine male thread bronze stop check valve
bargain
add to cartMarine male thread bronze stop check valve:
we can offer marine gate valve, marine globe valve, marine butterfly valve, marine check valve etc
stop check valve standard: CB/ T, GB/ T, , JIS , DIN , API, ANSI, BS etc.
| Nominal pressure (Mpa) | Nominal Diameter (mm) | Applicable medium |
| 4.0 | 10~32 | Fresh water, lubricanting oil, fuel oil, t≤400℃steam |
| DN (mm | Structure dimension | Thread joint | Wrench size | Lift Range m | |||||||||
| L | H≈ | H1 | D | D1 | D2 | l | L1 | Atype | B type | ||||
| A type | B type | Atype | B type | ||||||||||
| 10 | 94 | 47 | 128 | 20 | 41 | M27*1.5 | 24.8 | 14 | 16 | 3 | 27 | 32 | 7 |
| 15 | 110 | 55 | 143 | 25 | 52 | M36*2 | 33 | 22 | 22 | 5 | 32 | 41 | 10 |
| 20 | 116 | 58 | 154 | 32 | 55 | M39*2 | 36 | 25 | 23 | 5 | 36 | 46 | 12 |
| 25 | 130 | 65 | 168 | 38 | 64 | M48*2 | 45 | 32 | 26 | 6 | 46 | 50 | 14 |
| 32 | 140 | 70 | 200 | 46 | 72 | M56*2 | 53 | 38 | 28 | 6 | 46 | 60 | 16 |
More Marine male thread bronze stop check valve can be offered, pls contact us for more details
