Marine Flanged Bronze Check Valve | China Deyuan Marine Fitting Co.,Ltd

Marine Flanged Bronze Check Valve

Marine Flanged Bronze Check Valve

bargain

Marine Flanged Bronze Check Valve :

we can offer marine gate valve, marine globe valve, marine butterfly valve, marine check valve etc

Bronze Check Valve standard: CB/ T, GB/ T, , JIS , DIN , API, ANSI, BS etc

PN (Mpa)	DN (mm)	Structure dimension					Lift range (m)	Weight (kg)

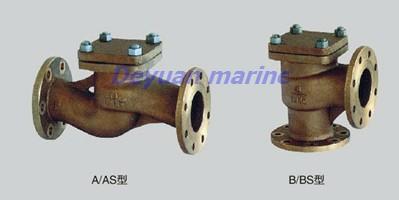

PN (Mpa)	DN (mm)	L		H≈		H1	Lift range (m)	A type	B type
1.0	65	290	115	123	94	115	19	12.2	11.3
	80	310	125	139	104	125	23	16.4	14.3
	100	350	150	160	117	135	28	24.6	22.7
	125	400	175	185	129	155	35	37.0	30.4
1.6	125	400	175	197	143	155	35	45.8	40.0
2.5	20	150	75	79	66	75	6	3.6	3.5
	25	160	80	80	67	80	7	4.3	4.1
	32	180	85	85	68	85	9	5.0	4.8
	40	200	90	88	76	90	12	6.3	6.0
	50	230	95	109	85	95	15	8.6	8.2
	65	290	115	123	94	115	19	13.5	11.5
	80	310	125	150	110	125	23	19.8	17.3
	100	350	150	155	118	135	28	30.5	25.7

More Marine Flanged Bronze Check Valve can be offered, pls contact us for more details
