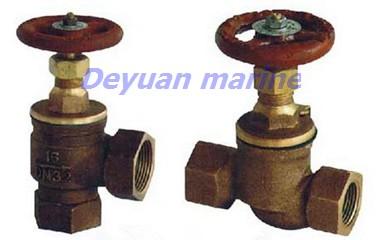

Marine low pressure male thread bronze globe valve

bargain

Marine low pressure male thread bronze globe valve:

we can offer marine gate valve, marine globe valve, marine butterfly valve, marine check valve etc

globe valve standard: CB/ T, GB/ T, , JIS , DIN , API, ANSI, BS etc

Nominal pressure (Mpa)	Nominal Diameter (mm)	Applicable medium
1.6	6~32	Sea water, fresh water, lubricanting oil, fuel oil, t≤250℃ steam
Parts name	material
	name	marks
Body/ cover/ disc	Cast tin bronze	ZCuSn10Zn2
Stem	Stainless steel	DN610: 2Cr13
	Aluminum bronze	DN15~32, CuAl9Mn2

DN610Dimensions globe valve

DN (mm)	globe valve Structure dimension					globe valve Thread joint					Hand wheel		Lift Range m	Weight (kg)
	L		H≈		H1	globe valve Thread joint					Hand wheel			A	B
	A type	B type	A type	B type	B type	D	D1	D2	L0	L1	D0	S
6	78	34	90	77	32	M18*1.5	15.8	9	13	2	50	6	5	0.34	0.28
10	80	34	90	78	32	M22*1.5	19.8	13	14	2	50	6	5	0.40	0.32
DN15~32 dimensions
15	95	46	100	91	40	M30*2	27	19	19	3	50	6	5	0.60	0.53
20	110	49	112	100	44	M36*2	33	24	19	3	65	7	6	0.98	0.96
25	125	53	128	113	48	M42*2	39	29	20	3	80	8	8	1.38	1.33
32	145	58	136	121	56	M48*2	45	36	20	3	80	8	9	1.60	1.55

More Marine low pressure male thread bronze globe valve can be offered, pls contact us for more details
