Marine Cast Iron Flanged Globe Valves
bargain
add to cartMarine Cast Iron Flanged Globe Valves :
we can offer marine gate valve, marine globe valve, marine butterfly valve, marine check valve etc
Flanged Globe Valves standard: CB/ T, GB/ T, , JIS , DIN , API, ANSI, BS etc

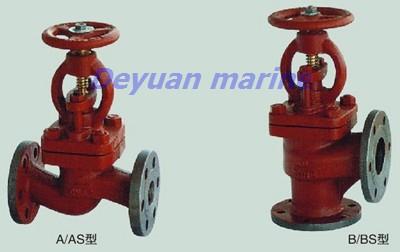

PN1.01.6Mpa A type, B type dimension
| PN (Mpa) | DN | Flanged Globe Valves Structure dimension | Weight (kg) | |||||
| L | H≈ | H1 | ||||||
| A type | B type | A type | Btype | B type | A type | B type | ||
| 1.0 | 65 | 290 | 115 | 310 | 277 | 115 | 18.9 | 16.7 |
| 80 | 310 | 125 | 345 | 304 | 125 | 23.0 | 19.9 | |
| 100 | 350 | 150 | 374 | 325 | 135 | 31.0 | 27.2 | |
| 125 | 400 | 175 | 426 | 366 | 155 | 39.3 | 37.5 | |
| 150 | 480 | 180 | 482 | 410 | 160 | 55.5 | 48.4 | |
| 1.6 | 20 | 150 | 75 | 217 | 203 | 75 | 5.7 | 5.1 |
| 25 | 160 | 80 | 217 | 203 | 80 | 6.0 | 5.6 | |
| 32 | 180 | 85 | 236 | 216 | 85 | 7.0 | 6.9 | |
| 40 | 200 | 90 | 260 | 236 | 90 | 9.2 | 8.5 | |
| 50 | 230 | 95 | 288 | 258 | 95 | 11.9 | 11.3 | |
More Marine Cast Iron Flanged Globe Valves can be offered, pls contact us for more details
