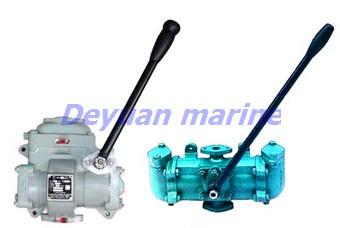

Marine Hand Pump
bargain
add to cartMarine Hand Pump:
Specific Details:
This product is of double-acting reciprocating piston structure, suitable for delivery of fresh water, fuel sewage and non-corrosive liquids.
It is not suitable for the liquids containing fibers or other solid granules.
Y type in the CCS series pumps are used to draw oils or freshwater:
Y type in the CS series pumps are used to draw seawater.
I, III series hand pumps are used to draw freshwater.
Marine Hand Pump
| Type | Marine Hand Pump Main technical parameter | |||||
| Capacity (L/ min) | Pressure head (m) | Recipro-cation (1/ min) | Suction head (m) | Cylinder diameter (mm) | Piston stroke (mm) | |
| CS-20 | 20 | 20-25 | 50 | 5 | 65 | 68 |
| CS-20Y, CS-20H | 20 | 25 | 50 | 6 | 65 | 68 |
| CS-25Y, CS-25H | 32 | 25 | 50 | 6 | 75 | 80 |
| CS-32 | 40 | 20-25 | 50 | 5 | 88 | 90 |
| CS-32Y CS-32H | 48 | 25 | 50 | 6 | 88 | 90 |
| CS-40Y CS-40H | 65 | 25 | 50 | 6 | 95 | 96 |
| I | 20 | 30 | 80 | 5 | 65 | 50 |
| III | 65 | 30 | 52 | 5 | 100 | 68 |
