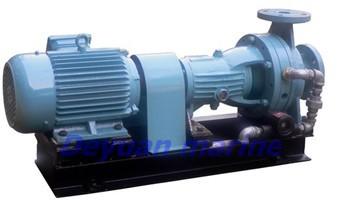

CWR Marine Horizontal Hot Water Circulating Pump :

Specification:

CWR series horizontal hot water circulating pump driven by a marine motor, commonly be used for circulation of boiler hot water (fresh water) on the sea or river shipping. The feeding hot water must not higher than 200℃, water inlet pressure not higher than 1.6Mpa.

cooling water capacity between 0.6M3/ h to 1 M3/ h and water temperature not higher than 40℃.

The Hot Water Circulating Pump rotates clockwise viewed from motor.

Technical Details:

Type

Hot Water Circulating Pump

(50HZ, 3phase, 380v) main technial parameter

Motor power (kw)

Capacity

(m3/ h)

Head

(m)

Speed

(r/ min)

NPSHR

(m)

Shaft power (kw)

40CWR-6.5

8

15

2900

3

0.58

1.1

40CWR-6.5A

7

12

2900

3

0.42

0.75

40CWR-4.5

8

25

2900

3

1.10

1.5

40CWR-4.5A

7

22

2900

3

0.87

1.5

40CWR-4.5B

6

18

2900

3

0.63

1.1

40CWR-3.5

8

35

2900

3

1.71

3

40CWR-3.5A

7

32

2900

3

1.42

2.2

40CWR-3.5B

6

28

2900

3

1.12

1.5

50CWR-9

13

15

2900

3

0.94

1.5

50CWR-9A

15

12

2900

3

0.66

1.1

50CWR-6

13

25

2900

3

1.70

3

50CWR-6A

15

22

2900

3

1.32

2.2

50CWR-6B

11

18

2900

3

0.95

1.5

50CWR-4.5

15

35

2900

3

2.57

3

50CWR-4.5A

13

32

2900

3

2.10

3

50CWR-4.5B

11

28

2900

3

1.58

2.2

50CWR-3.5

15

50

2900

3

4.04

5.5

50CWR-3.5A

13

45

2900

3

3.25

4

50CWR-3.5B

11

40

2900

3

2.55

3

More types Hot Water Circulating Pump

can be offered, pls contact us for more details.
