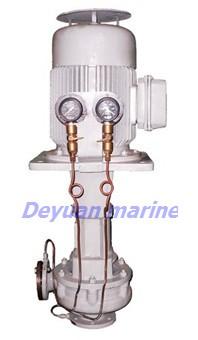

Marine Vertical Centrifugal Pump

bargain

CL Series Marine Vertical Centrifugal Pump :

Vertical Centrifugal Pump Application:

It widely serves as fresh water and seawater cooling pump, bilge pump, ballast pump and general pump, and used for seawater desalting device and marine pressure cabinet.

The transported medium temperature shall note exceed 80℃. self-priming device are can be assembled according to users order with additional cost, to achieve self-priming function

Vertical Centrifugal Pump More technical details:

Type	Vertical Centrifugal Pump Main technical parameter (50HZ, 3phase, 380v)					Power (kw)
Type	Capacity (m3/ h)	Head (m)	Speed (r/ min)	NPSHR (m)	Shaft power (kw)
CLV65-200A	27	14.5	1450	2.5	1.8	2.2
CLV65-280A	30	21	1450	2.5	3.1	4
CLV65-300A	30	28	1450	2.5	4.4	5.5
CLV65-350A	25	41	1450	2.5	6.1	7.5
CLV80-200A	48	14.5	1450	2.5	2.8	4
CLV80-220A	45	62	2950	4.0	12	15
CLV80-220B1	45	48	2950	4.0	9.8	11
CLV80-280A	54	21.5	1450	3.0	4.5	5.5
CLV80-300A	46	28	1450	2.8	5.8	7.5
CLV80-350A	54	41	1480	3.0	10.5	15
CLV80-350B	40	35	1480	2.5	6.9	11
CLV80-350B2	42	41	1480	2.5	8.4	11
CLV100-200A	83	14.5	1450	3.0	4.6	5.5
CLV100-220A	95	68.5	2950	4.5	24.2	30
CLV100-220B	87	55	2950	4.5	18.5	22
CLV100-280A	83	21	1450	3.0	6.4	7.5
CLV100-300A	83	28	1480	2.8	9.1	11
CLV100-350A	83	41	1480	3.2	14.2	18.5
CLV125-200A	116	14	1450	3.5	5.9	265
CLV125-220A	149	68.5	2950	5.5	36.9	595
CLV125-220B	128	55	2950	5.0	26.7	510
CLV125-270A	140	86	2950	5.0	44.7	800
CLV125-280A	125	21	1480	3.5	9.6	11

More Marine Vertical Centrifugal Pump can be offered, pls contact us for more details
