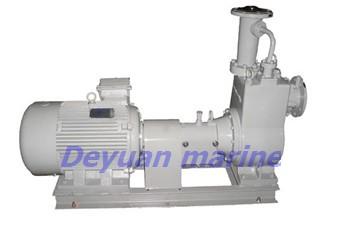

Marine Horizontal Self-priming Centrifugal Oil Pump

bargain

Marine Horizontal Self-priming Centrifugal Oil Pump :

Application:

used at boats and ships transport petrochemicals such as petrol, coal oil and diesel oil.

The temperature of medium can be between 20degrees below zero and 80degrees.

This series pump is a high quality marine cargo oil pump.

it also be suitable oil transport to the land oil tanker and oil tanker car and so on.

It is able to carry sewater and fresh water less than 80degrees.

When used non-corrosive mechanical seal it can be transport chemistry liquid.

Specification:

Type	Self-priming Centrifugal Oil Pump (50HZ, 3phase, 380v) main technical parameter					Motor power (kw)
	Capacity (m3/ h)	Head (m)	Speed (r/ min)	NPSHR (m)	Shaft power (kw)
40CYZ-20	6.3	20	2900	3.5	0.80	1.1
40CYZ-25	6.3	25	2900	3.5	1.07	1.5
40CYZ-32	6.3	32	2900	3.5	1.48	2.2
40CYZ-40	6.3	40	2900	3.5	1.96	3
50CYZ-25	12.5	25	2900	3.5	1.70	2.2
50CYZ-32	12.5	32	2900	3.5	2.37	3
50CYZ-40	12.5	40	2900	3.5	3.16	4
50CYZ-50	12.5	50	2900	3.5	4.15	5.5
65CYZ-25	25	25	2900	4	2.79	4
65CYZ-32	25	32	2900	4	3.75	5.5
65CYZ-40	25	40	2900	4	4.87	5.5
65CYZ-50	25	50	2900	4	6.55	7.5
65CYZ-63	25	63	2900	4	8.76	11
80CYZ-25	50	25	2900	4	5.20	7.5
80CYZ-32	50	32	2950	4	6.77	11
80CYZ-40	50	40	2950	4	8.59	11
80CYZ-50	50	50	2950	4	11.27	15
80CYZ-63	50	63	2950	4	14.70	18.5
80CYZ-80	50	80	2950	4	19.32	22
100CYZ-40	100	40	2950	4	16.27	18.5
100CYZ-50	100	50	2950	4	20.65	30
100CYZ-65	100	65	2950	4	27.23	30
100CYZ-75	70	75	2950	4	24.2	30
100CYZ-80	100	80	2950	4	34.61	30
150CYZ-50	200	50	1480	5	42.59	55
150CYZ-63	200	63	1480	5	57.24	75
150CYZ-80	200	80	1480	5	72.68	90
200CYZ-50	400	50	1480	5	76.71	90
200CYZ-63	400	63	1480	5	99.45	110
200CYZ-80	400	80	1480	5	130.06	160

More Marine Horizontal Self-priming Centrifugal Oil Pump can be offered, pls contact us for more details
