CLV Series Marine Vertical Centrifugal Pump :

Application:

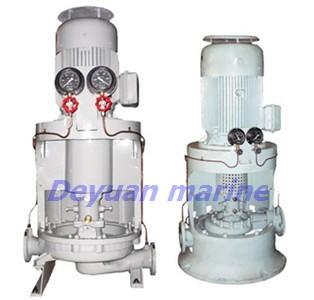

CLV series vertical centrifugal pump is our newly developed product driven by a marine motor.

Vertical Centrifugal Pump is widely used for transporting fresh water, seawater, condensate, oils and saline water.

The transported medium shall not contain any abrasive material and any other chemicals corroive on the pump.

It widely serves as fresh water and seawater cooling pump, bilge pump, ballast pump and general pump, and used for seawater desalting device and marine pressure cabinet.

The transported medium temperature shall note exceed 80℃. self-priming device are can be assembled according to users order with additional cost, to achieve self-priming function.

More technical details :

Type

Vertical Centrifugal Pump

Main technical parameter (50HZ, 3phase, 380v)

Power (kw)

Capacity

(m3/ h)

Head

(m)

Speed

(r/ min)

NPSHR

(m)

Shaft power (kw)

CLV65-200A

27

14.5

1450

2.5

1.8

2.2

CLV65-280A

30

21

1450

2.5

3.1

4

CLV65-300A

30

28

1450

2.5

4.4

5.5

CLV65-350A

25

41

1450

2.5

6.1

7.5

CLV80-200A

48

14.5

1450

2.5

2.8

4

CLV80-220A

45

62

2950

4.0

12

15

CLV80-220B1

45

48

2950

4.0

9.8

11

CLV80-280A

54

21.5

1450

3.0

4.5

5.5

CLV80-300A

46

28

1450

2.8

5.8

7.5

CLV80-350A

54

41

1480

3.0

10.5

15

CLV80-350B

40

35

1480

2.5

6.9

11

CLV80-350B2

42

41

1480

2.5

8.4

11

CLV100-200A

83

14.5

1450

3.0

4.6

5.5

CLV100-220A

95

68.5

2950

4.5

24.2

30

CLV100-220B

87

55

2950

4.5

18.5

22

CLV100-280A

83

21

1450

3.0

6.4

7.5

More Marine Vertical Centrifugal Pump can be offered, pls contact us for more details
