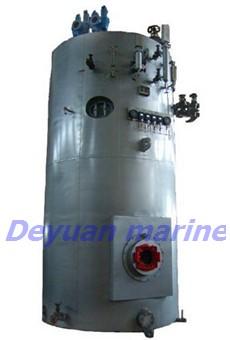

Marine hot water boilers :

the medium material of HWB-series hot-water boiler is hot water below 90°C . This series boiler is used to warm the host engine and the deckhouse

of the shipyard as well as heat the fuel oil and lubricating oil. Oil-fired is the main way for heating and electricity-heat can be utilized for an assisted way for heating. The heat tube plate

can also be installed in HWB-series hot-water boiler to produce hot water for sailors bathing and other things.

Taking advantages of pin-tube, pin-pan is used as the key heat-transferring element of HWB-series hot-water boiler, so that this series boiler owns a simple structure, high heat-transferring efficiency, small cubage, light weight etc.

Quantity of Heat (MJ/ h)	Working Pressure (MPa)	Overall Dimension (mm)		Net Weight of Boiler (Kg)
		A	B
200	0.4	1600	520	550
300	0.4	1750	580	820
400	0.4	1900	680	900
500	0.4	2000	760	960
750	0.4	2100	920	1250
1000	0.4	2200	1100	1600
1500	0.4	2350	1280	1960

More Marine hot water boilers can be offered, pls contact us for more details
