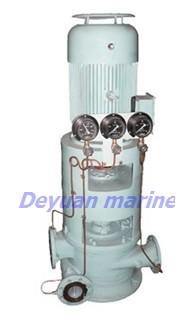

marine vertical double-stage double-outlet centrifugal pump
bargain
add to cart CLN Series marine vertical double-stage double-outlet centrifugal pump :
used to deliver fresh water and seawater, widely used for cooling, fire control, chamber loading and other general water drainage.
It can be used as the alkali liquid pump and distilling pump in seawater desalination.
It can also be used for industrial and urban water supply. The temperature of delivery medium shall not be over 80℃.
| Type | double-stage double-outlet centrifugal pump (50HZ, 3phase, 380v) main technical parameter | |||
| Capacity (m3/ h) | Head (m) | Speed (R/ min) | NPSHR (m) | |
| CLN80-340/2A | 51/51 | 29.5/65 | 1480 | 2.8 |
| CLN80-340-2C | 116/58 | 24/61 | 1480 | 3.4 |
| CLN80-340-2D | 112/54 | 15/51.5 | 1480 | 4.3 |
| CLN80-340-2E | 141/62 | 25.5/59 | 1480 | 4.2 |
| CLN100-380/2A | 95/91 | 36.5/86 | 1480 | 4.1 |
| CLN100-380/2C | 149/95 | 27.5/77 | 1480 | 3.7 |
| CLN100-380/2D | 141/95 | 16.5/60.5 | 1480 | 3.6 |
| CLN100-380/2E | 199/99 | 23.5/69.5 | 1480 | 4.2 |
| CLN125-380/2A | 124/120 | 33.5/77 | 1480 | 4.0 |
| CLN125-380/2C | 215/120 | 23.5/65 | 1480 | 4.2 |
| CLN125-380/2D | 199/108 | 17/60.5 | 1480 | 4.2 |
| CLN125-380/2E | 257/124 | 24/68.5 | 1480 | 3.5 |
| CLN150-380/2A | 199/182 | 33/79 | 1480 | 5.1 |
| CLN150-380/2C | 248/174 | 22/71.5 | 1480 | 4.9 |
| CLN150-380/2D | 265/166 | 14.5/62 | 1480 | 4.2 |
| CLN150-380/2E | 389/182 | 22/70 | 1480 | 4.6 |
More types marine vertical double-stage double-outlet centrifugal pump can be offered, pls contact us for more details.
