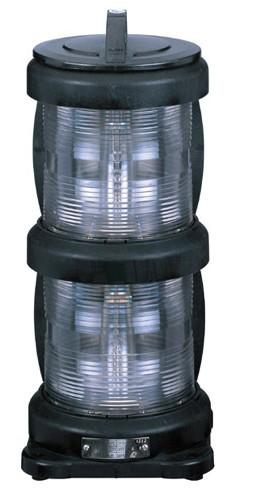

Double-deck Masthead Light CXH3-101P :

The scope of application:

Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation

Masthead Light characteristic:

1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.

2. The Masthead Light have the whole seal structure, Masthead Light is waterproof under the bad environment.

3. The connection of the signal light's lamp holder and the base adopt plug-in type, can replace the up and down bulb as open the cover.

4. The Masthead Light can work normally under the temperature -30℃~55℃
Masthead Light Adopt standard:

1. Conform to the international regulations for preventings collision at sea, 1972 and Grade

entry norms for steel ships

2. Confirm to the international standard IEC60598-1-2008

3. Confirm to the standard of marine electric signal light's technical condition GB/ T3028-1995

Masthead Light Production authentication:

1. Approved by CCS (China Classification society) ,and ZY of China Fishery Inspection.

2. Passed the authentication of CE

3. Approved by Germanischer Lloyd'GL'

4. Approved by MED/ EC

Specification:
